Dough sheeter SIGMA VOLUMETRICDIVIDER2PISTONS

The SIGMA VOLUMETRICDIVIDER2PISTONS is a volumetric divider suitable for electromechanical equipment ranges.

This machine divides dough with a 65% water content. It features a double chamber suction piston system designed for gentle division of soft doughs without compression.

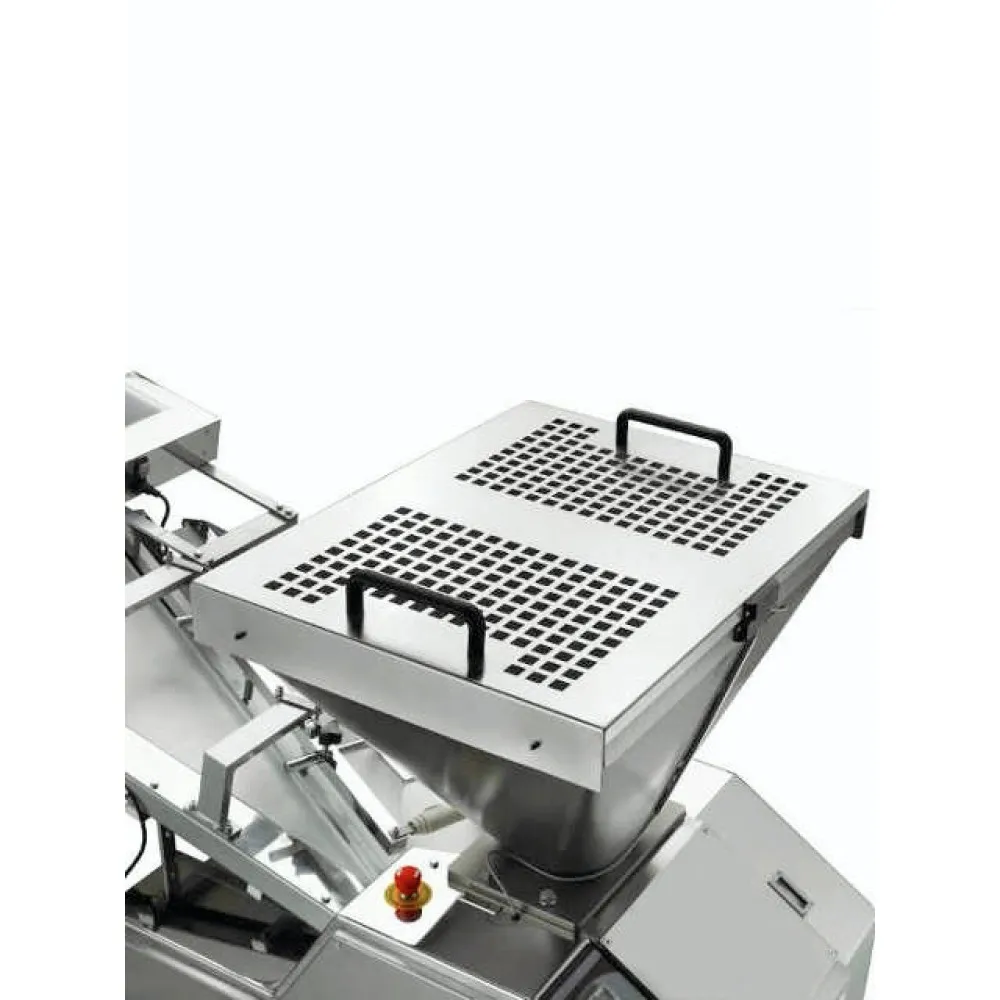

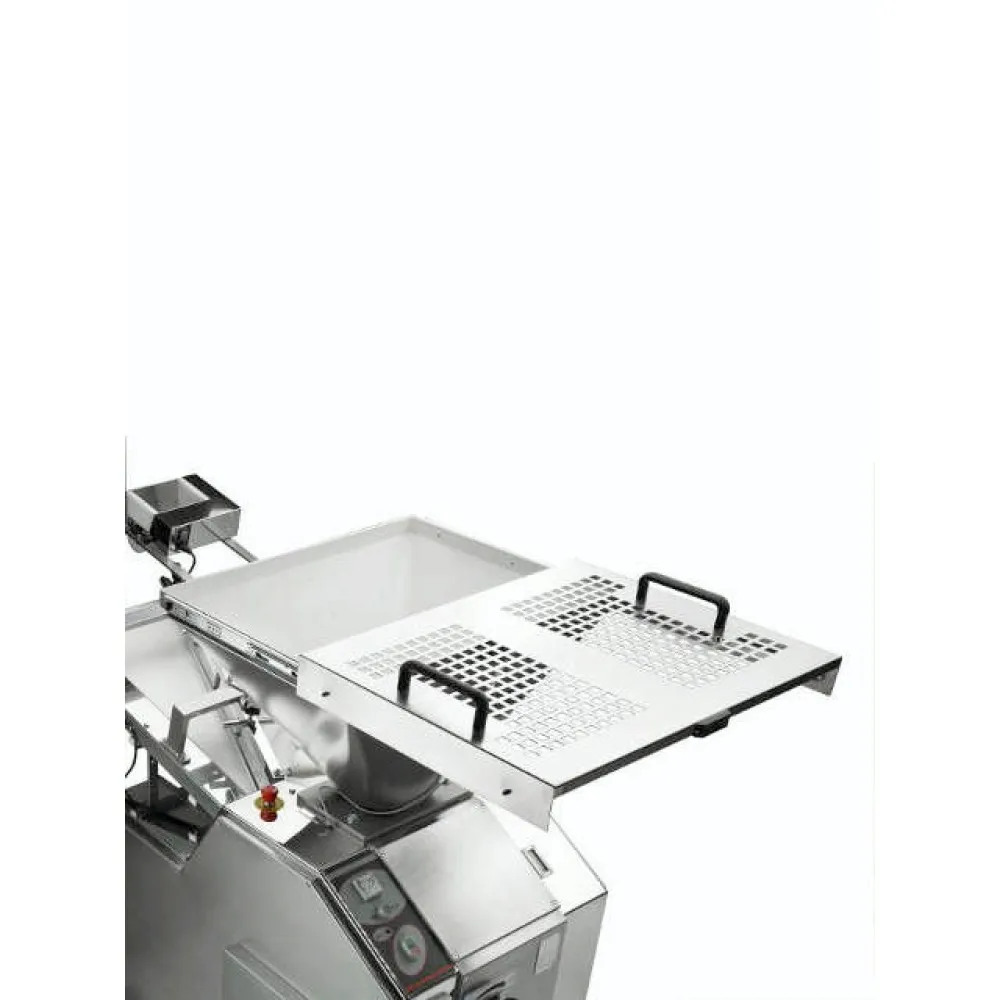

The standard 50 L hopper holds the dough. A speed variator allows adjustment of the division rate, and a frequency converter controls motor speed. Production output ranges from 1000 to 2400 pieces per hour. The divider includes a flour duster to prevent sticking and contour lubrication for smooth operation.

Construction features stainless steel covering. It is fitted with a flour duster, close circuit lubrication, and contour lubrication. A frequency converter is integrated, and a speed variator allows for adjustable division rates. A piece counter is also present.

The machine has a 50 L hopper capacity. Its power consumption is 1.5 kW. Dimensions are 700 mm length, 1760 mm width, and 1600 mm height. The unit weighs 700 kg.

Exchangeable pistons allow for different portion weights. Pistons with a 90 mm diameter produce portions from 30 g to 400 g. Pistons with a 110 mm diameter are for portions from 50 g to 600 g. Pistons with a 120 mm diameter are for portions from 80 g to 950 g. Pistons with a 135 mm diameter are suitable for portions from 140 g to 1300 g. The maximum weight error is 2% for non-fermented fresh dough.

This divider is listed with dough rolling machines and production confectionery equipment.
