Dough sheeter ROLLMATIC R65S/14

The Rollmatic R65S/14 is a semi-automatic dough sheeter designed for professional kitchens. This machine operates by passing dough through a pair of rollers, which are adjusted to a specific gap to achieve the desired thickness. The process is semi-automatic, meaning the operator guides the dough and initiates the sheeting action, but the machine controls the roller speed and gap.

The R65S/14 features chain transmission for its rollers. The cylinder width measures 650 mm, with an adjustable cylinder opening up to 50 mm, allowing for a range of dough thicknesses. Operation is managed via a 4.5" touch screen interface, which provides access to 50 work programs. These programs can be set to control roller speeds and the cylinder opening. The work cycle can be reversed using electric impulse keys or a foot control.

Safety is integrated through several features. The cylinder guards are equipped with a safety microswitch and supported by gas springs. The flour drawer also incorporates a safety microswitch. The machine includes a quick belt tensioning and release system for maintenance and operation. The scrapers are fitted with a QR® system for dough removal.

The specifications of the R65S/14 include a power consumption of 2 kW and a voltage requirement of 230 V. Its dimensions are 135 mm in length, 220 mm in width, and 168 mm in height. The unit weighs 360 kg.

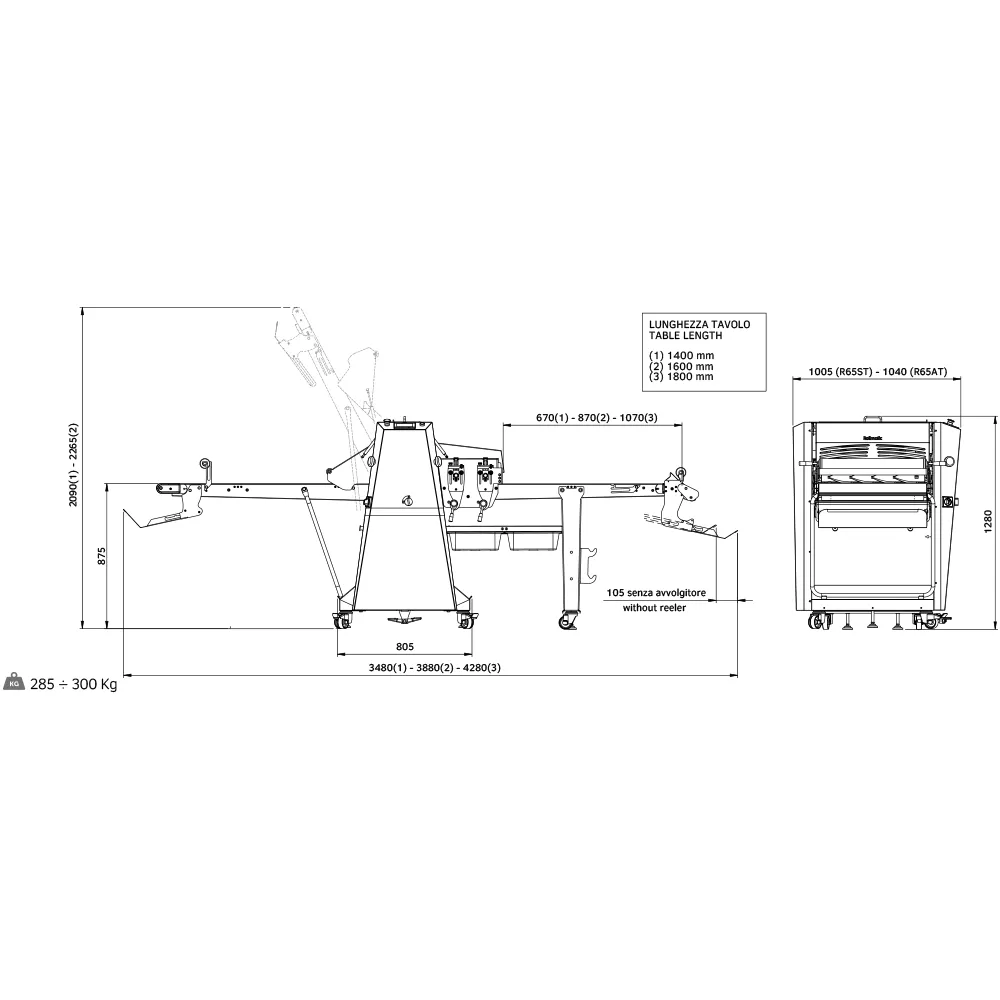

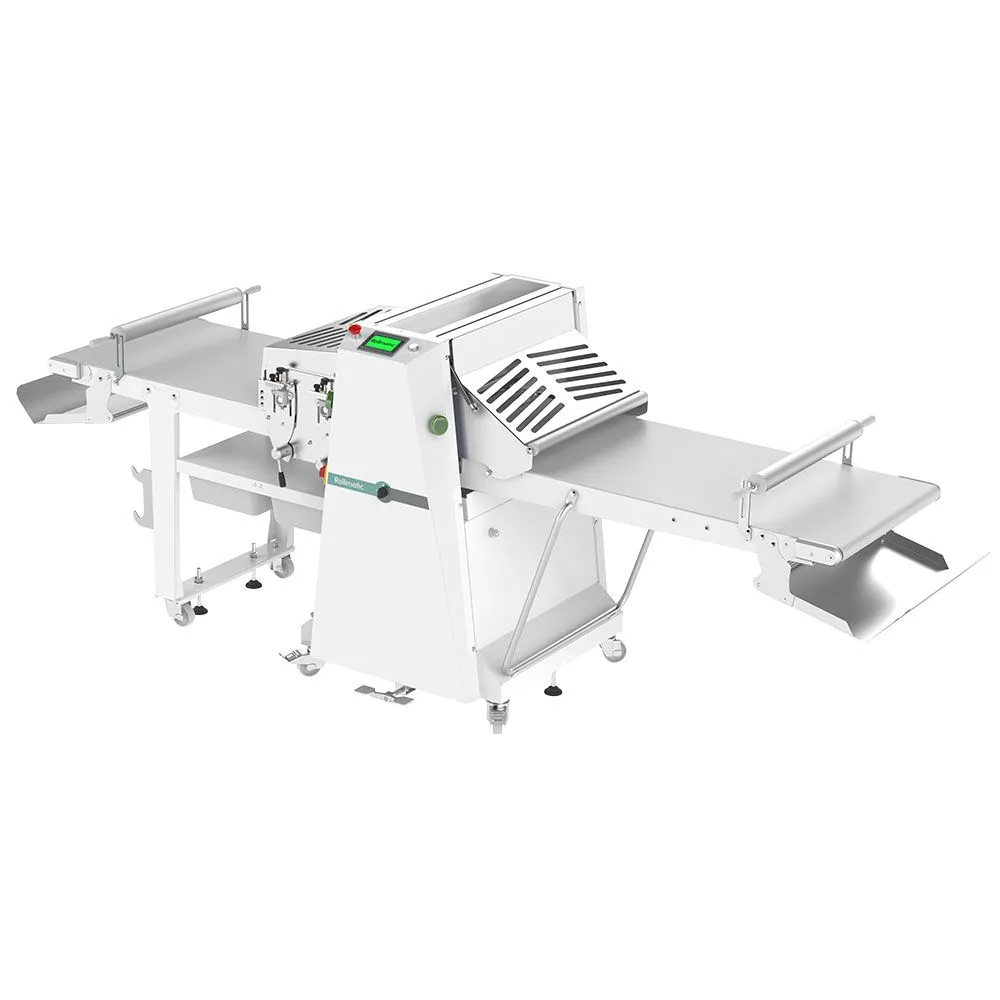

Included with the R65S/14 are tables measuring 650x1400 mm. A variant, the R65S-T, offers a built-in cutting unit, increasing the usable work surface area.

This product is listed in the catalogue under dough rolling machines.
