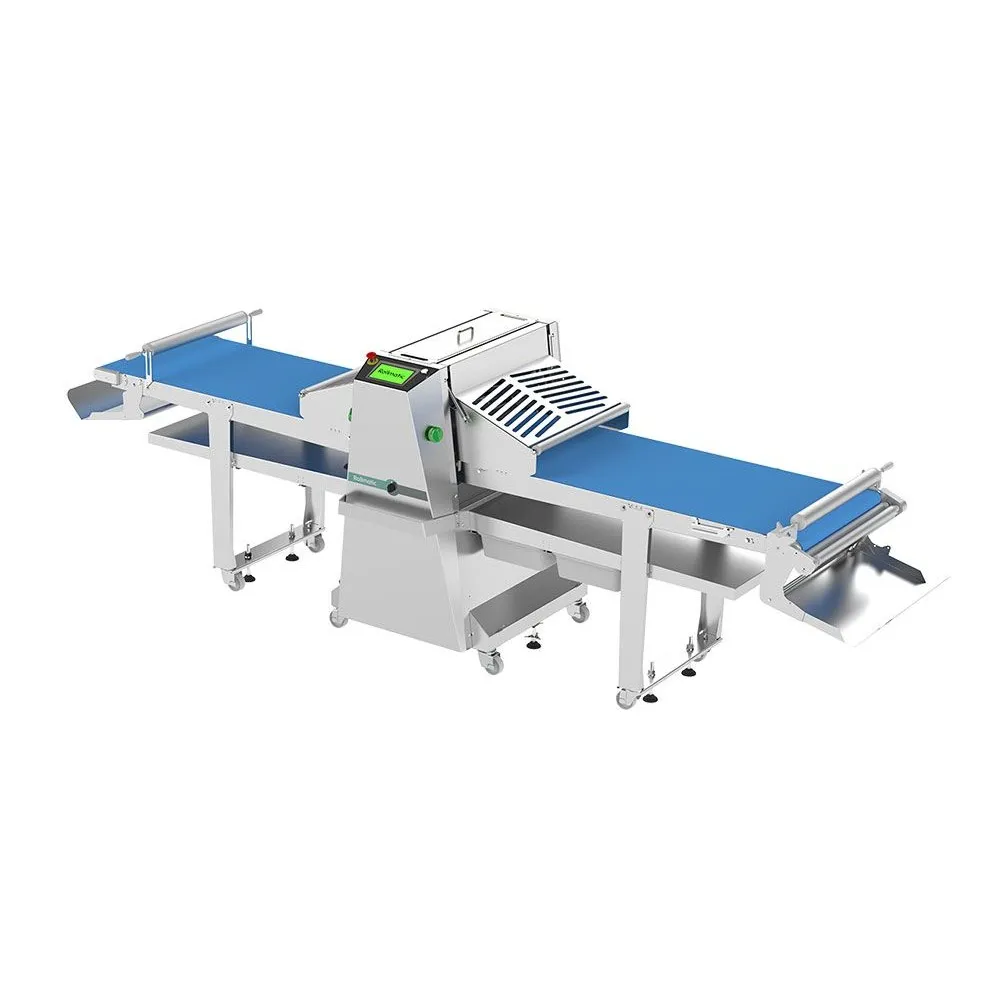

Dough sheeter ROLLMATIC R65AXP-T/20

This automatic dough sheeter laminates and stretches dough to a uniform thickness without manual effort. Two rotating cylinders pull the dough in, compress it, and feed it onto a conveyor belt. The gap between the cylinders determines the thickness, while the belt moves the sheet forward for cutting or additional processing. The method removes inconsistencies from hand rolling, delivering even texture and thickness for large batches of pastry, pizza bases, or laminated doughs.

The operator places dough on the infeed table, chooses a pre-set programme on the 7" touch screen, and starts the machine. The sheeter adjusts the cylinder gap automatically, processes the dough, and activates the built-in cutting unit when needed. Safety guards fitted with microswitches stop the machine if opened, and gas springs keep the guards secure during use. A quick belt tensioning system allows the conveyor belt to be released or tightened without tools, while the QR® scrapers can be lifted for cleaning. A flour drawer beneath the cylinders dusts the belt to prevent sticking, and its microswitch stops the machine if removed.

Constructed from stainless steel with a belt-driven transmission, the R65AXP-T/20 features a 650 mm-wide cylinder suitable for large dough pieces and a 60 mm opening for thicker doughs or multiple layers. The scrapers include a quick-release system for easy cleaning. The touch screen stores 100 work programmes, each controlling cylinder gap, belt speed, and cutting sequence, allowing recipes to be repeated without manual changes.

The unit operates on a 230 V power supply and weighs between 440 kg and 540 kg. The 2 kW power rating reflects the electrical load during operation.

Cleaning involves removing the QR® scrapers, releasing the belt tension to lift the conveyor, and wiping the cylinders and guards. The flour drawer slides out for emptying and cleaning, and the touch screen can be cleaned with a damp cloth. Stainless steel surfaces resist corrosion and are compatible with food-safe sanitisers.

The R65AXP-T/20 includes a built-in cutting unit, though knives must be purchased separately.
