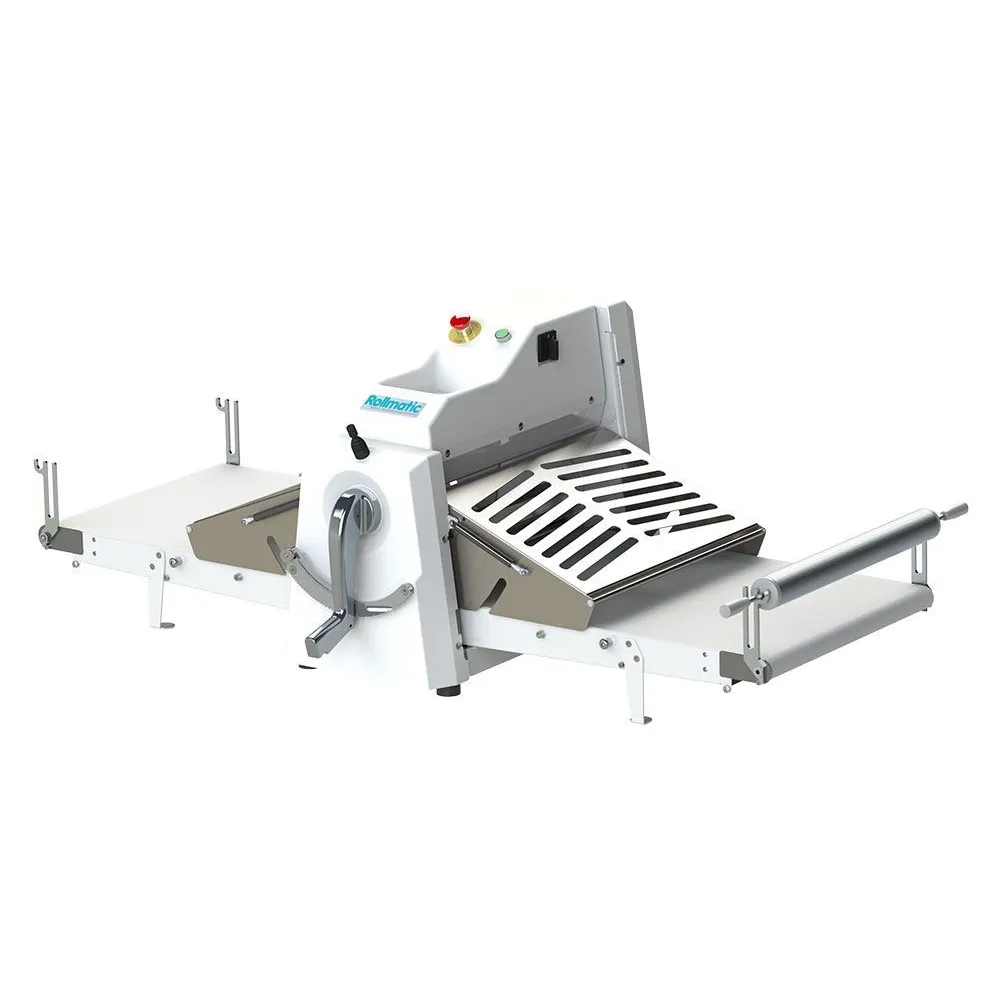

Dough sheeter ROLLMATIC R55B/08

The ROLLMATIC R55B/08 is a manual dough sheeter.

This machine processes dough by passing it through adjustable rollers to achieve a desired thickness. It can be used multiple times for thinner sheets or larger dimensions. The machine is equipped with foldable and removable tables.

To operate, place dough on a table and guide it towards the rollers. Stainless steel cylinder guards with a safety microswitch are fitted, which stop the machine if the guard is moved. A gas spring aids guard operation. Work cycle inversion can be controlled via a joy-stick; a foot control is available as an optional accessory.

The cylinder width is 550 mm, and the cylinder opening is 38 mm. The tables measure 550 mm by 800 mm. The unit's power consumption is 0.55 kW, and it requires a 400 V electrical supply. Its dimensions are 550 mm long, 800 mm wide, and 1820 mm high. The total weight is 178 kg.

Maintenance should focus on cleaning stainless steel parts, checking the safety microswitch, and servicing the mechanical components of the rollers and tables.

This model is offered as a table-top unit or with a trolley. It is listed in the dough rolling machines category.
