Counter freezer with granite worktop Novameta BHS-FM0-N240-130/70/90

This Novameta M240 is a freezing counter designed for table freezer applications. It features a granite table top and is constructed from AISI 304 stainless steel.

The operating principle of a freezing counter involves a refrigeration system that actively removes heat from an insulated cabinet, lowering the internal temperature to preserve food items. This process is distinct from a standard refrigerator, as it aims to achieve much lower temperatures for rapid freezing or long-term storage.

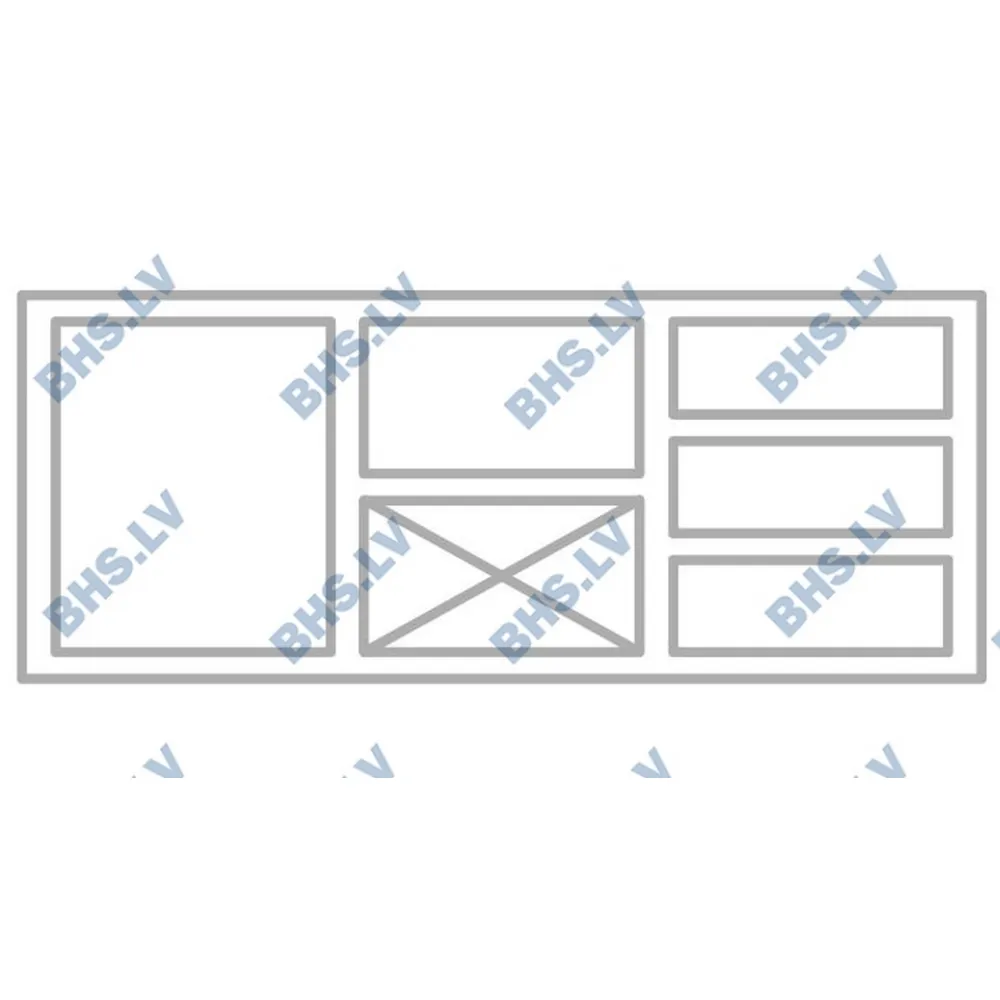

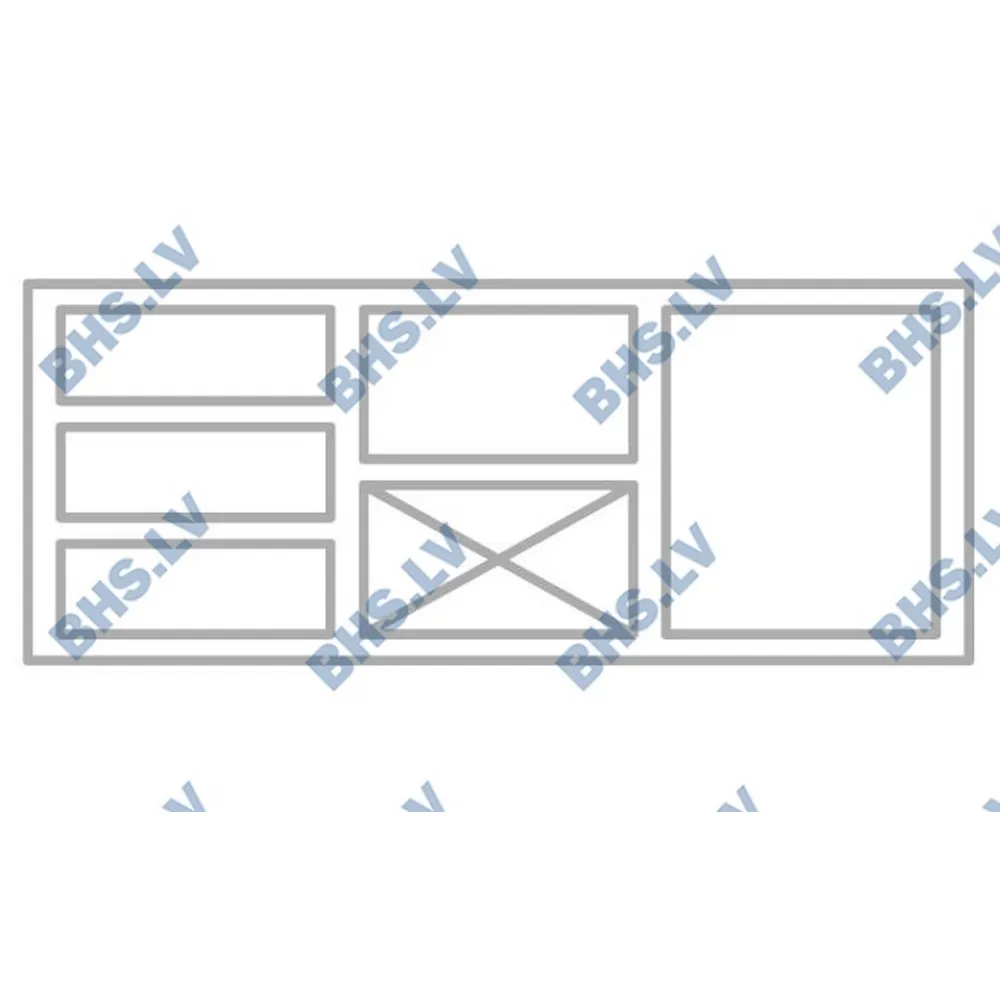

The sequence of use involves loading food items into the counter. The unit operates continuously to maintain its set temperature range. The counter is equipped with one door and four drawers, providing organised storage and access to the frozen contents.

The worktop of this unit measures 1300 mm in length and 700 mm in width. The overall dimensions of the counter are 1300 mm in length, 700 mm in width, and 890 mm in height. The internal volume available for storage is 230 litres.

This appliance operates on a 230 V electrical supply and draws 4.1 A with a power consumption of 0.542 kW. The operating temperature range for this freezer counter is between -20 °C and -18 °C. The unit weighs 190 kg.

Cleaning and upkeep should focus on the stainless steel surfaces and the granite top, following standard procedures for commercial refrigeration equipment.
