Technical data
| Attributes | |
| ARTICLE | OG6-PR1-70/60/50 |
| SIZE L/W/H | 700/ 600/ 500 |
| COOKING PANELS | 6 GN1/1 (325x530 mm) |

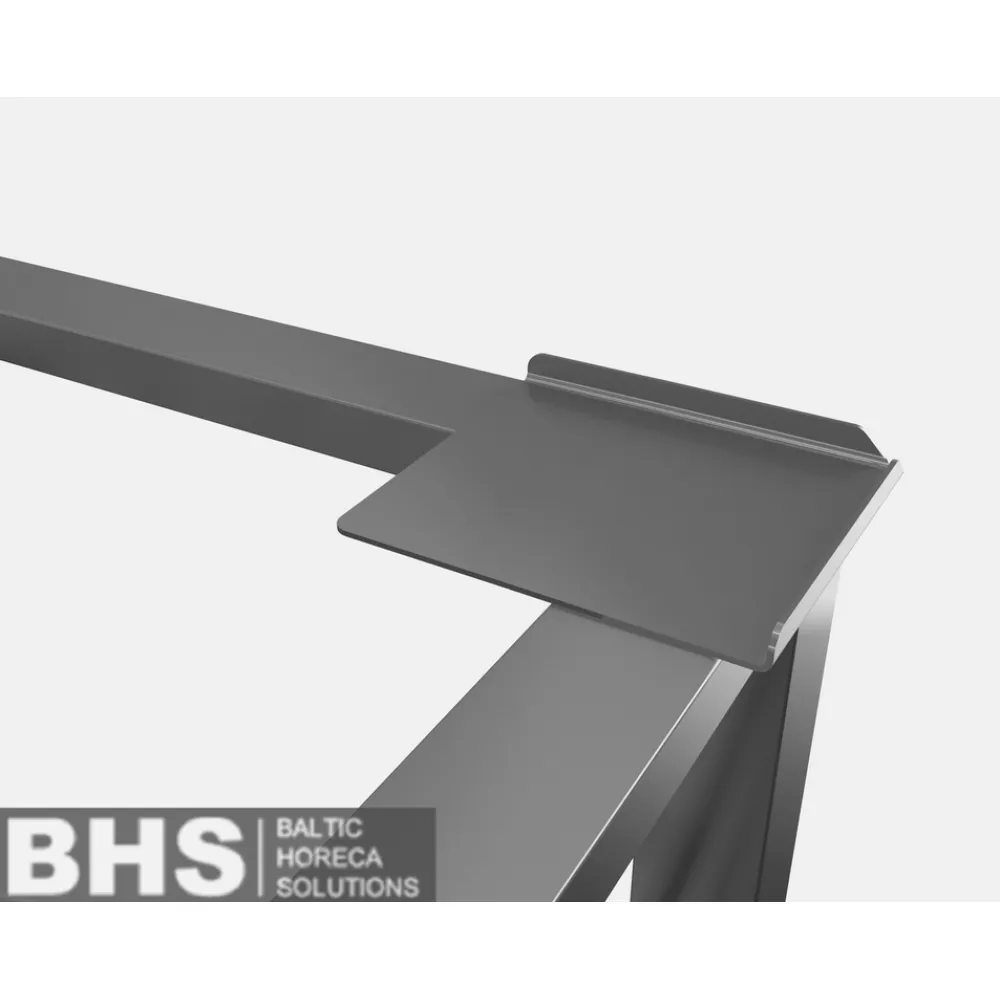

A convection oven stand raises the appliance to a comfortable working height, freeing the worktop for preparation and plating. The stand supports the oven's weight evenly, preventing vibration and uneven heating while allowing hot air to circulate beneath the unit. Adjustable feet level the stand on uneven floors, ensuring the oven door seals properly and the fan distributes heat without obstruction. The operator positions the stand where the oven will be used, adjusts the feet until the surface is level, then lowers the oven onto the frame. Removable shelves slide into the frame to hold GN1/1 pans, creating extra storage or staging space directly beneath the oven. When the oven is in use, the shelves keep pans within reach, reducing movement across the kitchen. After service, the shelves lift out for cleaning or to clear the space below. The frame is welded from stainless steel tubes in 40x40 mm, 40x20 mm and 25x25 mm sections, chosen for rigidity and corrosion resistance. Anti-slide corners on the top surface prevent the oven from shifting during operation. The adjustable feet are stainless steel with a rubber pad, allowing a total height variation of 65 mm to accommodate sloping floors. Two additional heavy-duty feet provide extra stability when the stand is loaded with pans and a fully stocked oven. Six GN1/1 cooking panels, each 325x530 mm, fit side by side on the top surface, matching the standard pan size used in professional kitchens. The 700 mm width and 600 mm depth create a footprint that fits beneath most convection ovens while leaving space for the oven's ventilation requirements. The 500 mm height places the oven door at a comfortable opening level for most operators. Cleaning involves wiping the stainless steel frame and shelves with a damp cloth and mild detergent. The removable shelves allow thorough cleaning of the frame and the floor beneath the stand. When the oven is rolled into place, the stainless-steel feet lock the stand so it cannot shift under the weight of hot, fully loaded pans. Variants include custom stand heights between 600 mm and 900 mm, allowing the stand to be matched to specific kitchen layouts or operator preferences. The stand is designed to support Novameta convection ovens and is compatible with other brands that share the same footprint and weight distribution.
