Convection and bakery oven accessory Novameta OG6-PR1-60/60/50

A convection oven needs a stable, hygienic base that matches its working height and holds its trays without shifting. This stand provides that base: a welded stainless steel frame sized to carry the oven and its full load of hot, heavy pans. The frame is built from rectangular tubes that resist twisting under weight, while the adjustable feet let the operator level the unit on an uneven floor or raise it to a comfortable working height.

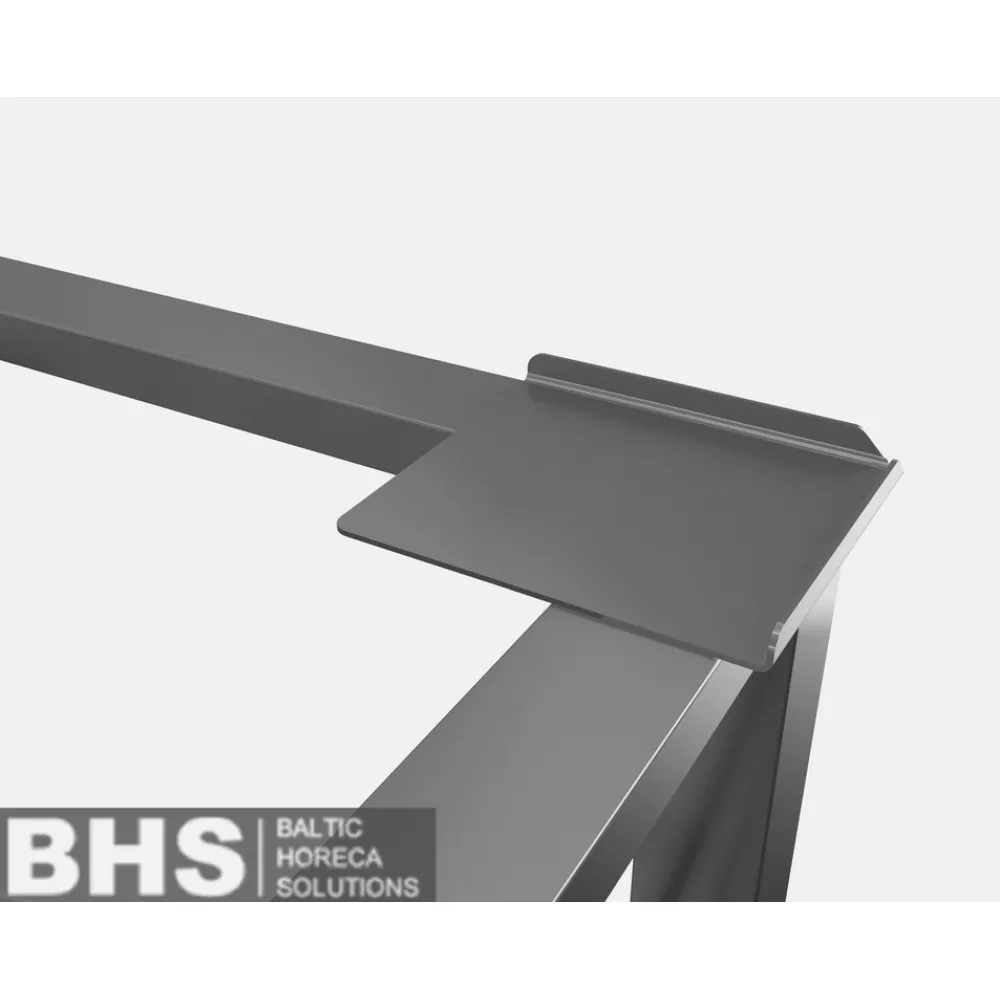

The stand is designed around the standard GN1/1 tray size. Six of these trays sit side by side on the frame, ready for loading or unloading. The trays themselves are not supplied, but the stand's dimensions ensure they will fit without overhang. Anti-slide corners at each post prevent the trays from moving once they are in place, reducing the risk of spills or burns during service.

Setting up the stand is straightforward. The operator positions the frame, extends the adjustable feet until the unit is level, and locks them in place. If the kitchen requires a taller work surface, the feet can be raised further within the 65 mm range, or the optional heavy-duty feet can be fitted for an additional 40 mm of adjustment. Once the stand is stable, the two removable shelves can be inserted or left out, depending on whether the kitchen needs extra storage below the oven.

The construction is entirely stainless steel, chosen for its resistance to corrosion and ease of cleaning. The frame is welded in a hygienic manner, with smooth joints that do not trap food debris or grease. The legs are made from 40x40 mm tube, while the cross-bracing uses 40x20 mm and 25x25 mm tubes, giving the stand the strength to support a fully loaded oven without flexing.

The adjustable feet are the only moving parts. The standard feet offer a 65 mm range, allowing the stand to be raised or lowered by 30 mm above or 35 mm below the nominal height. The optional heavy-duty feet provide an additional 40 mm of adjustment, split equally above and below the nominal height. This flexibility means the stand can be adapted to different kitchen layouts or operator preferences without needing tools.

The stand's footprint of 600x600 mm fits neatly under most 600 mm-wide convection ovens, leaving no wasted space. Its height of 500 mm is standard for worktop appliances, ensuring the oven sits at a comfortable working level. If a taller setup is needed, the stand can be customised to heights between 600 mm and 900 mm, though this requires ordering the extended version rather than adjusting the feet.

Cleaning is simple: the operator removes the shelves, wipes down the frame with a damp cloth and sanitiser, and dries it to prevent water spots. The smooth welds and open tube construction mean there are no crevices where dirt can accumulate, and the stainless steel will not rust or stain under normal kitchen conditions.

Two versions of the stand are available. The standard version includes the adjustable feet and anti-slide corners. The extended version adds the heavy-duty feet and removable shelves, offering greater height adjustment and storage options. Both versions can be customised for heights between 600 mm and 900 mm if ordered with the taller frame.

This stand is designed to fit Novameta convection ovens and other models with a 600 mm width and compatible tray sizes. Its catalogue placement is under oven stands and bases, where it serves as a versatile support for professional kitchen equipment.
