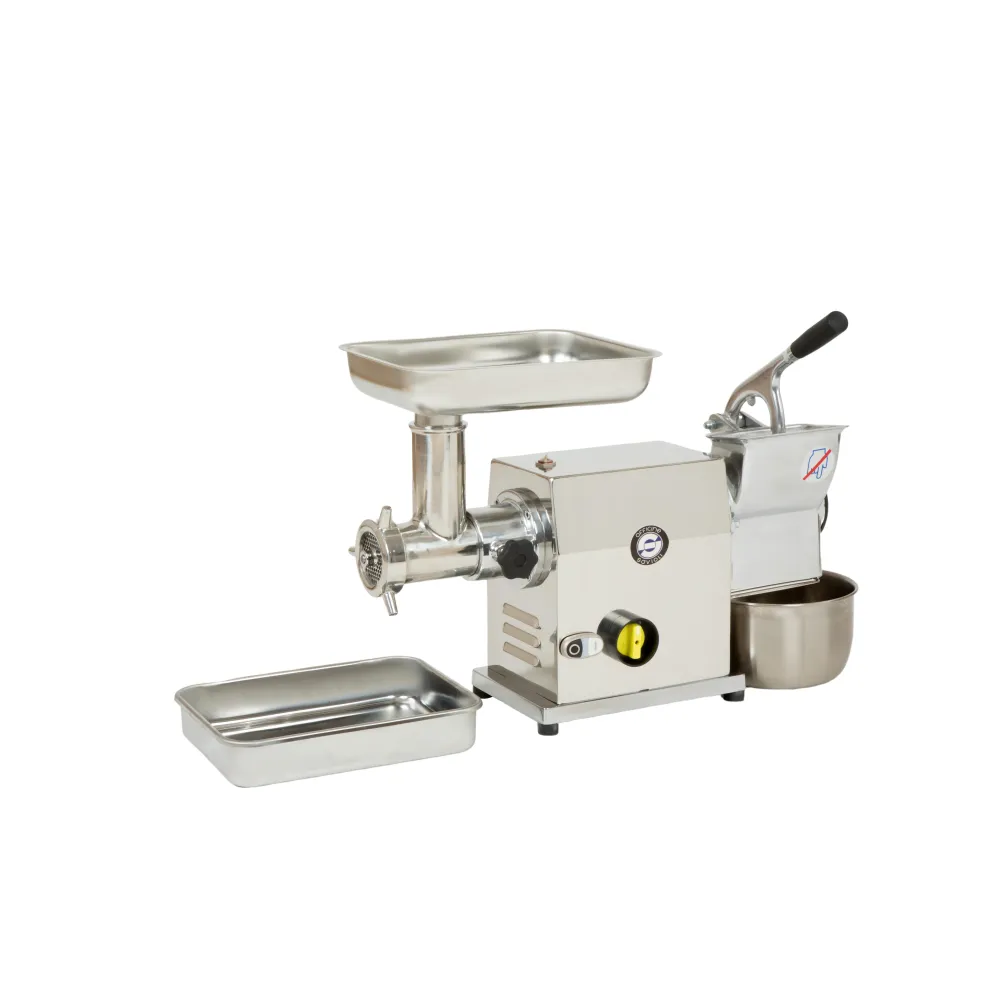

Cheese grater SAVIOLI GRP12T

The SAVIOLI GRP12T is a combined unit designed for mincing meat and grating cheese. This appliance operates by using an electric motor to drive a rotating mechanism. For mincing, a screw mechanism pushes meat through a perforated plate, while for grating, a roller processes cheese. The motor's power and speed determine the rate at which these processes occur.

Operation involves feeding the prepared ingredients into the appropriate section of the machine. The meat is placed into the inlet, and the mincing process begins. For cheese, it is fed to the grater roller. The unit features a reversing switch, which can be used to clear blockages or correct the direction of the mincing mechanism. A microswitch is integrated with the grater presser lever, adding a layer of operational safety.

The machine's construction includes an anodised aluminium inlet for the meat. The main mincing unit is made from external polished stainless steel, and the overall structure is also stainless steel. Both the plate and knife used for mincing are self-sharpening stainless steel components. The cheese grater roller is also constructed from stainless steel. A lower protection grid is fitted to safeguard moving parts.

The controls include a reversing switch for the mincing function and a microswitch linked to the grater presser lever. The electric card operates on Low Voltage (24 V).

The 1.1 kW power rating indicates the electrical load the appliance places on the supply. The 1400 rpm speed refers to the rotational velocity of the motor or its driven components, influencing processing speed. The dimensions of 640 mm in length, 350 mm in width, and 450 mm in height define the unit's footprint and the space it will occupy. The 30.5 kg weight signifies its mass, relevant for placement and movement. The 400 V voltage specification details the electrical supply requirement.

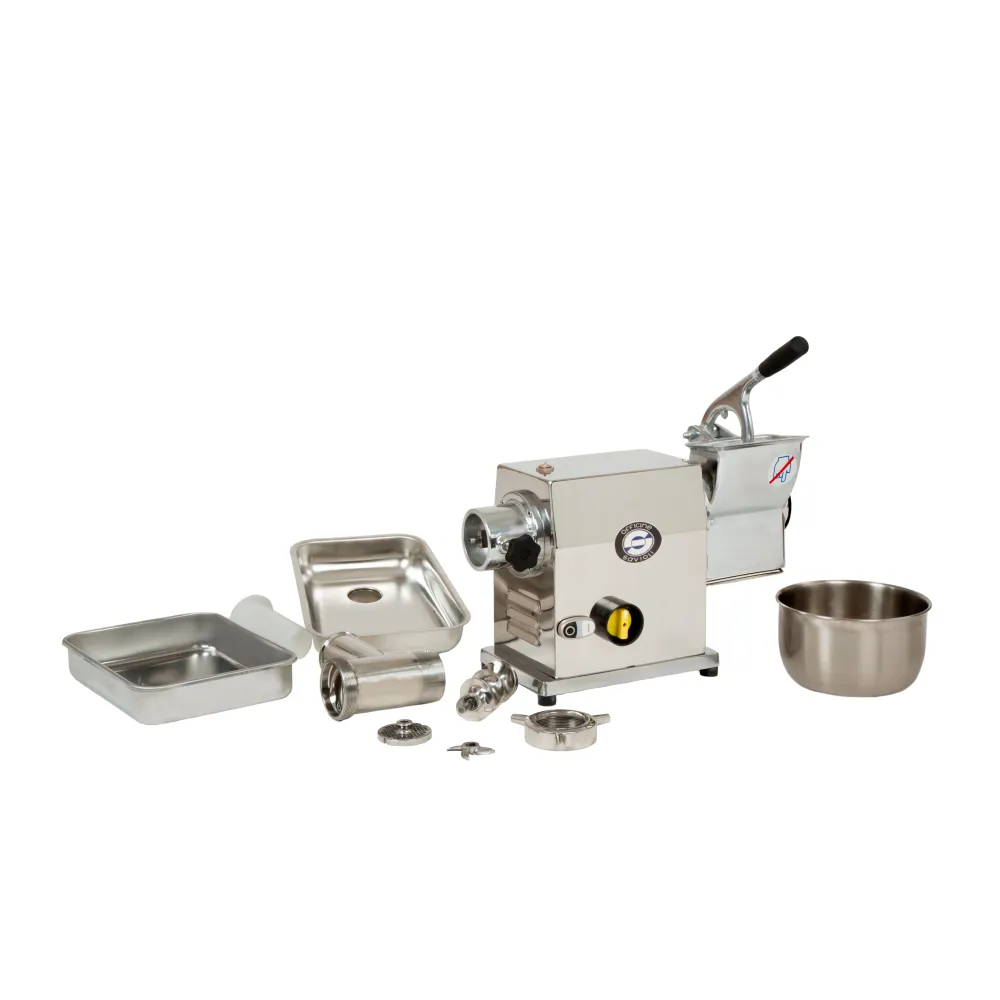

Cleaning involves the removable stainless steel parts, such as the plate, knife, and grater roller, which can be detached for thorough washing. The external surfaces should be wiped down.

This appliance is listed in the catalogue under electromechanical equipment as a cheese grater.
