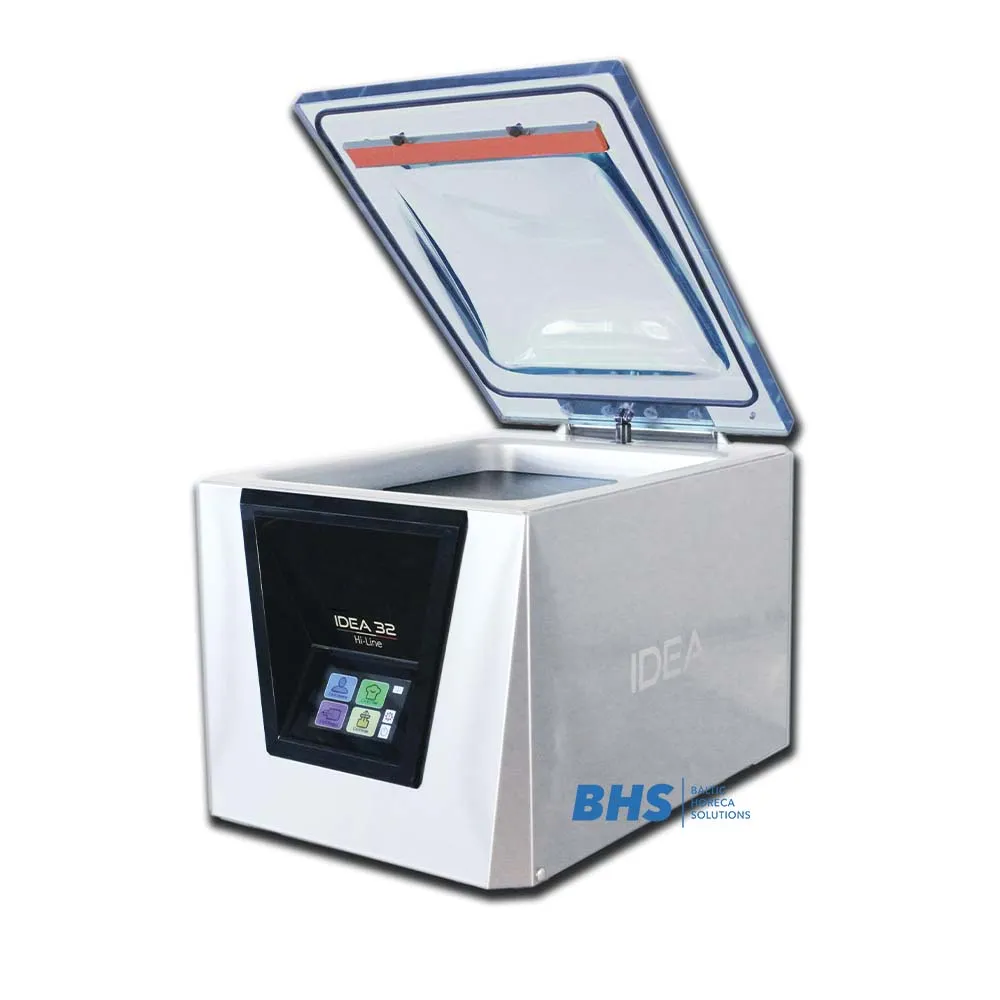

Chamber vacuum unit ORVED idea-32H

The ORVED IDEA 32 HI-LINE is a professional vacuum packing machine, article code idea-32H. It is designed to remove air from packaging, creating a vacuum seal that preserves food quality and extends shelf life.

The operating principle involves drawing air out of a specially designed bag using a vacuum pump, then sealing the bag to maintain the low-pressure environment. This process prevents oxidation and inhibits the growth of aerobic bacteria. The machine features a chamber where the bag is placed. Once the lid is closed, the vacuum pump activates, evacuating air from both the chamber and the bag. After the desired vacuum level is reached, a heated sealing rod melts the edges of the bag together, creating an airtight closure. The vacuum pump on this model has a capacity of 12 cubic metres per hour, and it can achieve a maximum vacuum level of 2 mbar.

To operate, place food into a suitable bag, ensuring it does not exceed the maximum dimensions of 300x400 mm. Position the open end of the bag within the chamber, aligning it with the sealing rod. Close the machine's lid. The vacuum cycle will commence, drawing air out. Once the cycle is complete, the sealing rod activates to fuse the bag. The machine has a sealing rod length of 315 mm, suitable for bags up to this width.

The chamber dimensions are 343 mm in length, 434 mm in width, and 175 mm in height. The overall external dimensions of the unit are 415 mm long, 603 mm wide, and 460 mm high. The machine operates on a 230 V electrical supply and has a power consumption of 0.7 kW. It weighs 46.5 kg.

This machine is listed in the catalogue under chamber vacuum machines.
