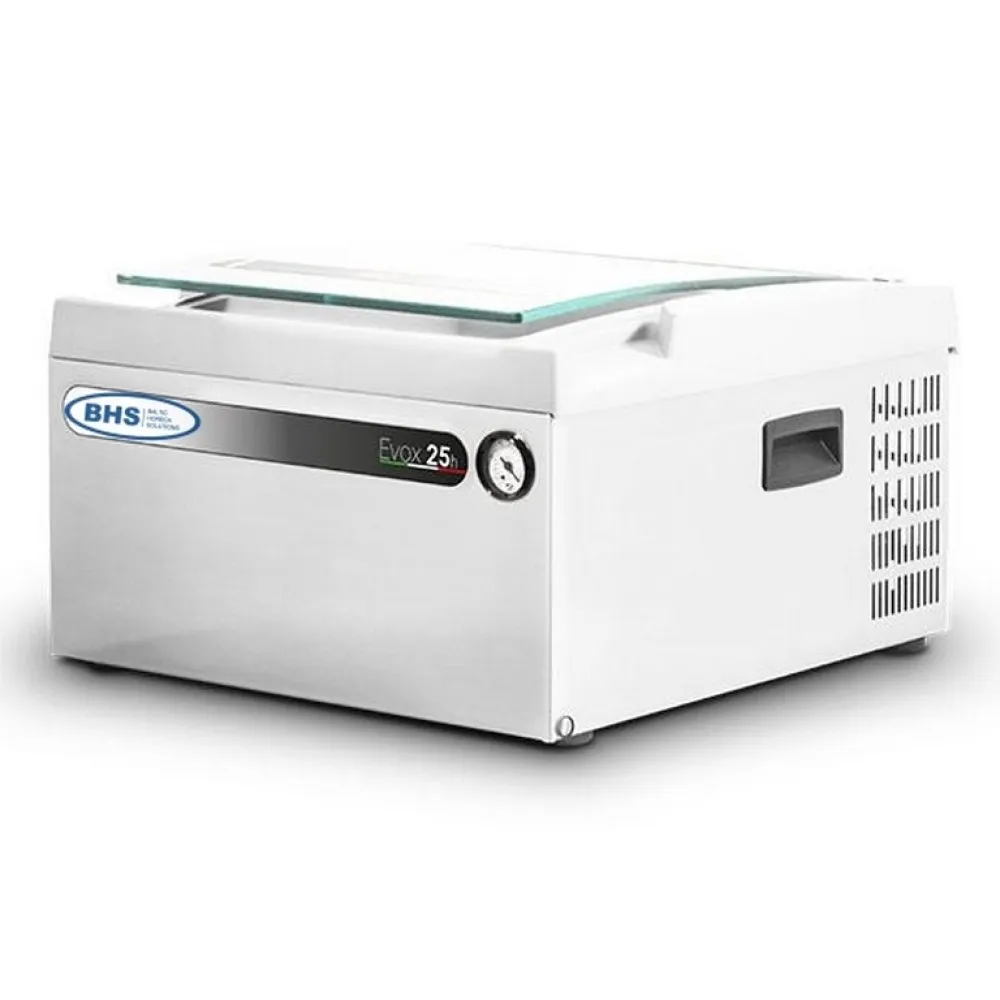

Chamber vacuum unit ORVED BHSE25H

The ORVED Evox25H is an automatic vacuum packing machine, article BHSE25H. Its construction includes a stainless steel frame and a vacuum chamber incorporating "HIGH FLEX" technology.

The operating principle of a vacuum packing machine involves removing air from a bag containing a product before sealing it. This process extends the shelf life of food by reducing exposure to oxygen, which slows down spoilage and prevents freezer burn. The machine creates a vacuum within the chamber, allowing the bag to collapse around the contents, and then seals the bag to maintain the vacuum.

To use the Evox25H, place the product in a suitable bag and position the bag within the chamber. The machine features a touch-sensitive vacuum system and a touch panel. Operators can select one of the 2 preset programmes or manually control the vacuum level. The machine offers 4 distinct levels of tightness, allowing for precise control over the amount of air removed. It can package both solid and liquid products. A pump humidification programme, H2Out, is included for maintaining the vacuum pump.

The machine is equipped with a 260 mm removable sealing rod, capable of accommodating bags up to 250x300 mm. The vacuum pump has a capacity of 8 m3/h. The overall dimensions are 444 mm in length, 481 mm in width, and 271 mm in height. The unit weighs 27 kg and operates on a 230 V power supply, with a power consumption of 0.45 kW.

Cleaning and upkeep involve the removable sealing rod and the stainless steel chamber. The H2Out programme aids in maintaining the vacuum pump.

This model is listed in the catalogue under chamber vacuum machines.
