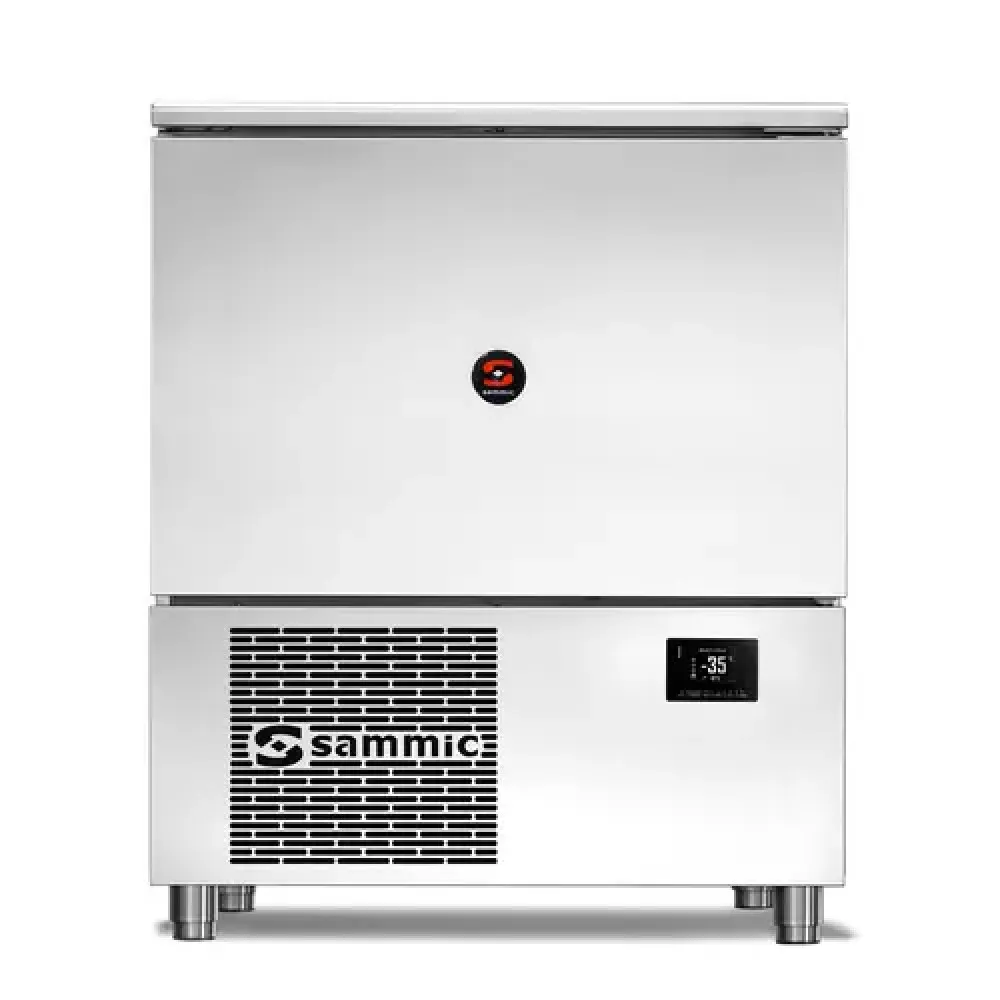

Blast chiller SAMMIC 5170188

The SAMMIC AT-7 1/1 PW is a blast chiller freezer designed for rapid temperature reduction of food products. This type of appliance operates by circulating cold air at high velocity, significantly faster than a standard refrigerator, to quickly lower the core temperature of food. This process helps preserve food quality, texture, and nutritional value by minimising the formation of ice crystals and inhibiting bacterial growth.

The unit has a capacity for 7 GN1/1 containers. Construction is in stainless steel, featuring hygienic cathodic protection for ease of cleaning. The insulation is made from expanded polyurethane foam, free from CFCs and HFCs. It is equipped with high-power compressors and evaporators treated with cataphoresis, utilising a low GWP Freon refrigerant.

Operation is managed via an advanced control panel. This panel allows for cycles to be set by temperature, time, or by using a core probe. It includes a HARD function for rapid cooling and a SOFT function for deep-freezing. The system stores data at the end of each cycle and permits customisation and saving of cycles and settings. HACCP functions are integrated for alarm storage, and Bluetooth connectivity enables remote control of processes.

The power rating of 1.2 kW indicates the electrical load the unit places on the supply. The voltage requirement is 230 V, operating on a single phase. Its dimensions are 820 mm in length, 738 mm in width, and 1142 mm in height. The unit weighs 140 kg, indicating it is a substantial piece of equipment.

Cleaning and upkeep are facilitated by the stainless steel construction and hygienic design. The catalogue places this product within the cold equipment and blast freezers categories.
