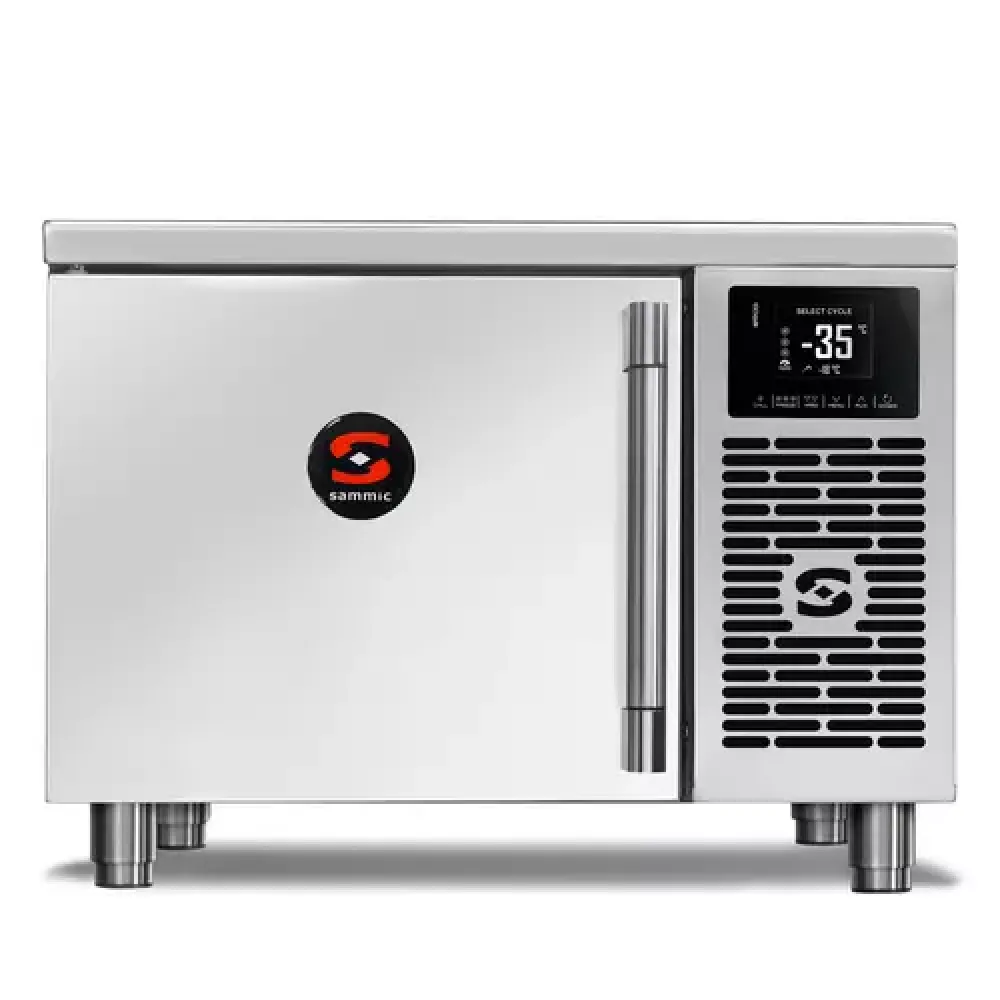

Blast chiller SAMMIC 5142182

The SAMMIC AT-3 1/1 PW is a blast chiller freezer designed for rapid temperature reduction of food products.

This appliance operates by circulating cold air at high velocity around the food. Unlike a standard refrigerator, a blast chiller uses powerful compressors and an indirect airflow system to remove heat from the food core much more quickly. This rapid cooling helps to preserve food quality, texture, and nutritional value by minimising the time spent in the temperature danger zone where bacterial growth is most rapid. The AT-3 1/1 PW includes a HARD function for rapid cooling and a SOFT function for deep-freezing, allowing operators to select the appropriate cycle for different food types and desired outcomes.

The sequence of use involves loading the food into the unit, selecting the desired cooling or freezing cycle via the advanced control panel. The control panel allows for programming cycles based on temperature, time, or the use of a core probe. Once a cycle is initiated, the appliance automatically manages the cooling process. At the end of the cycle, data is stored, and customisable cycles and settings can be saved for future use. The unit also incorporates HACCP functions for storing alarms, aiding in food safety management.

Construction is primarily stainless steel, chosen for its hygienic properties and ease of cleaning. The insulation is made from expanded polyurethane foam, free from CFC's and HFC's. Evaporators are treated with cataphoresis for enhanced durability, and the unit employs a Freon refrigerant with a low GWP content. Bluetooth connectivity is also included.

The advanced control panel allows for selection of cycles based on temperature, time, or core probe. It features distinct HARD and SOFT functions for rapid cooling and deep-freezing respectively. Customisation and saving of cycles and settings are possible, alongside HACCP functions for alarm storage.

The capacity is rated at 3 GN1/1 containers. The power rating is 0.5 kW. Its dimensions are 600 mm in length, 864 mm in width, and 460 mm in height. The unit operates on a 230 V, single-phase electrical supply. The weight is 55 kg.

Cleaning and upkeep are facilitated by the stainless steel construction and hygienic design. Specific maintenance details would follow from the named components and materials.
