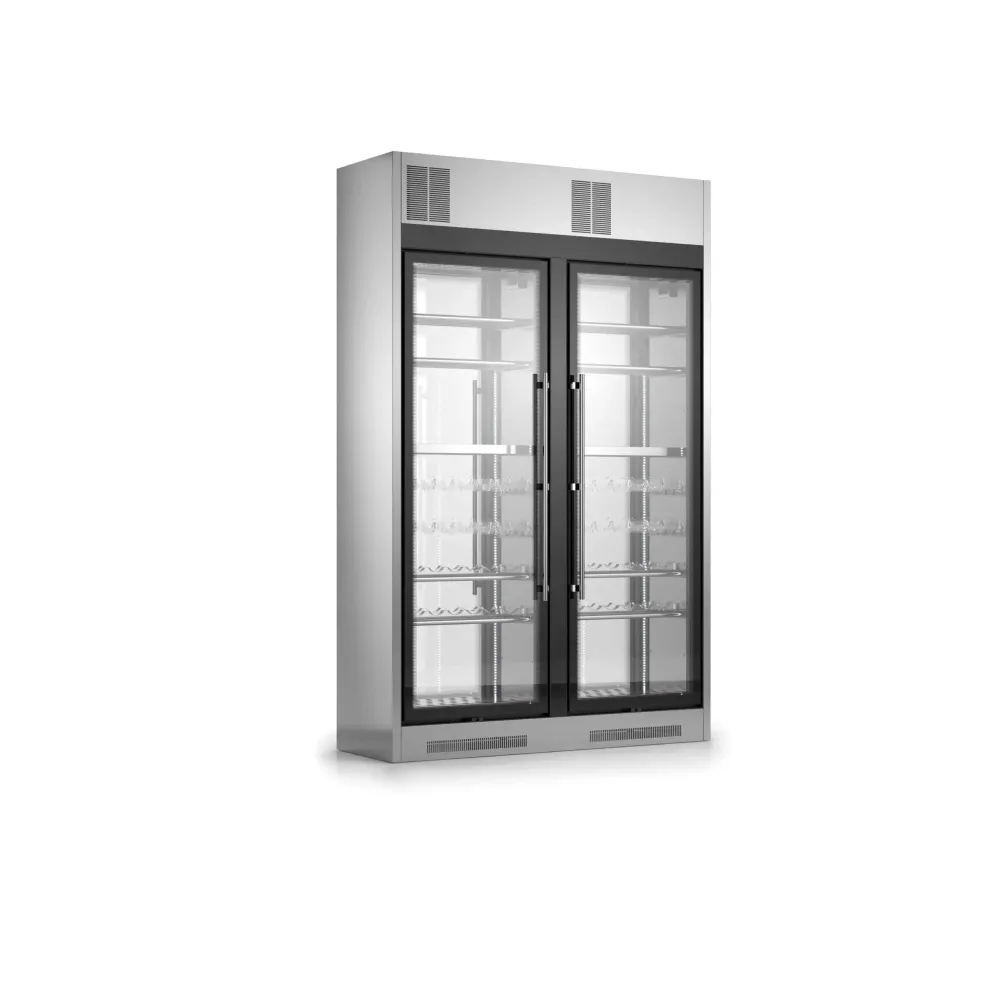

Wine refrigerator GEMM 60000430

A pass-through wine display cooler keeps bottles at cellar temperature while letting customers see the selection from both sides of the counter. The unit draws warm air from the room, cools it with a refrigerant that circulates through a sealed monoblock compressor, and pushes the chilled air across the shelves with a fan. Because the air is constantly moving, every bottle is exposed to the same temperature, and no hot spots form near the door or at the back. The refrigerant, R290, absorbs heat efficiently and releases it outside the cabinet without harming the ozone layer or contributing to global warming.

To use the cooler, slide the lockable pass-through door open, load up to 256 bottles onto the adjustable shelves, and close the door. The touch control panel on the top frame lets the operator set the temperature between 4 °C and 16 °C, choose between automatic or manual defrost, and adjust the brightness of the internal LED lighting. Once the programme is set, the cooler maintains the temperature on its own, defrosts the evaporator coils automatically, and drains the condensate water without intervention. A key lock secures the door against unauthorised opening.

The cabinet is built from stainless steel, inside and out, for strength and easy cleaning. The monoblock condensing unit is mounted at the base, keeping the noise level below 43 dB so the cooler can stand in customer-facing areas without disturbing conversation. The exterior dimensions of 1650 mm wide, 550 mm deep and 2600 mm high allow the unit to fit through standard commercial doorways and stand against a wall or island counter. A single-phase 230 V supply powers the compressor, fan and lighting, drawing 0.98 kW under full load.

The temperature range of 4 °C to 16 °C covers the storage needs of white, rosé and red wines, as well as sparkling wines and fortified wines. The 256-bottle capacity suits medium to large bars, restaurants and retail wine shops that need to display a varied selection without restocking several times a day. The footprint of 1650 mm by 550 mm leaves enough room for a worktop or counter above the cooler, turning the top surface into usable space. The weight of the unit, combined with the monoblock design, means it can be moved with a standard pallet truck or sack barrow without disassembly.

Cleaning involves wiping the stainless-steel interior and exterior with a damp cloth and mild detergent, and vacuuming the condenser coils at the base to remove dust. The automatic defrost and condensate drainage eliminate the need for manual defrosting or emptying trays. Shelving and internal fittings are ordered separately, allowing the operator to choose bottle racks, wooden slats or wire shelves to match the display style.

The WL6/226P is available in a standard stainless-steel finish or with a custom-painted exterior to match the décor of the room. Warm LED lighting (2700 K) can be specified instead of the standard 6000 K white. The cooler meets Climate Class 4, so it maintains performance in ambient temperatures up to 30 °C and 55% relative humidity, typical of busy commercial kitchens and customer areas.

In the catalogue, the WL6/226P is listed under Professional Refrigeration, Display Coolers, Pass-Through Units.
