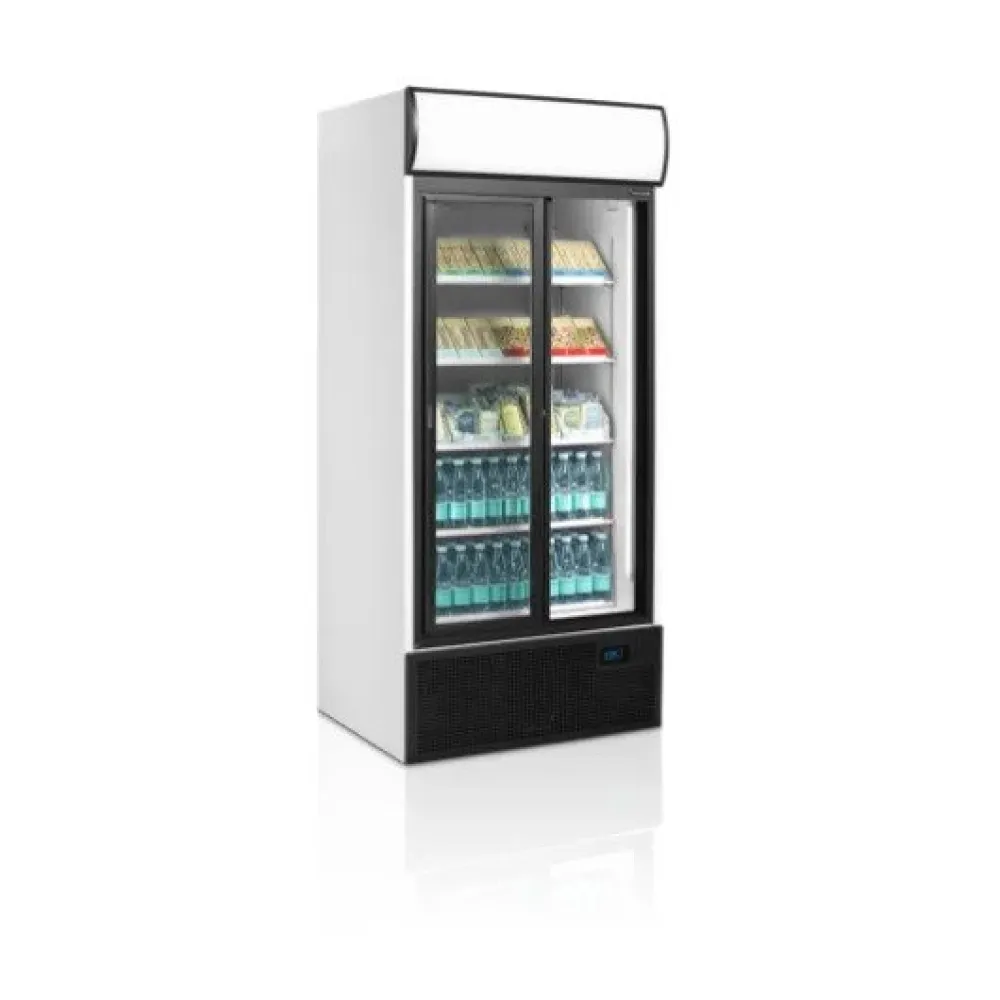

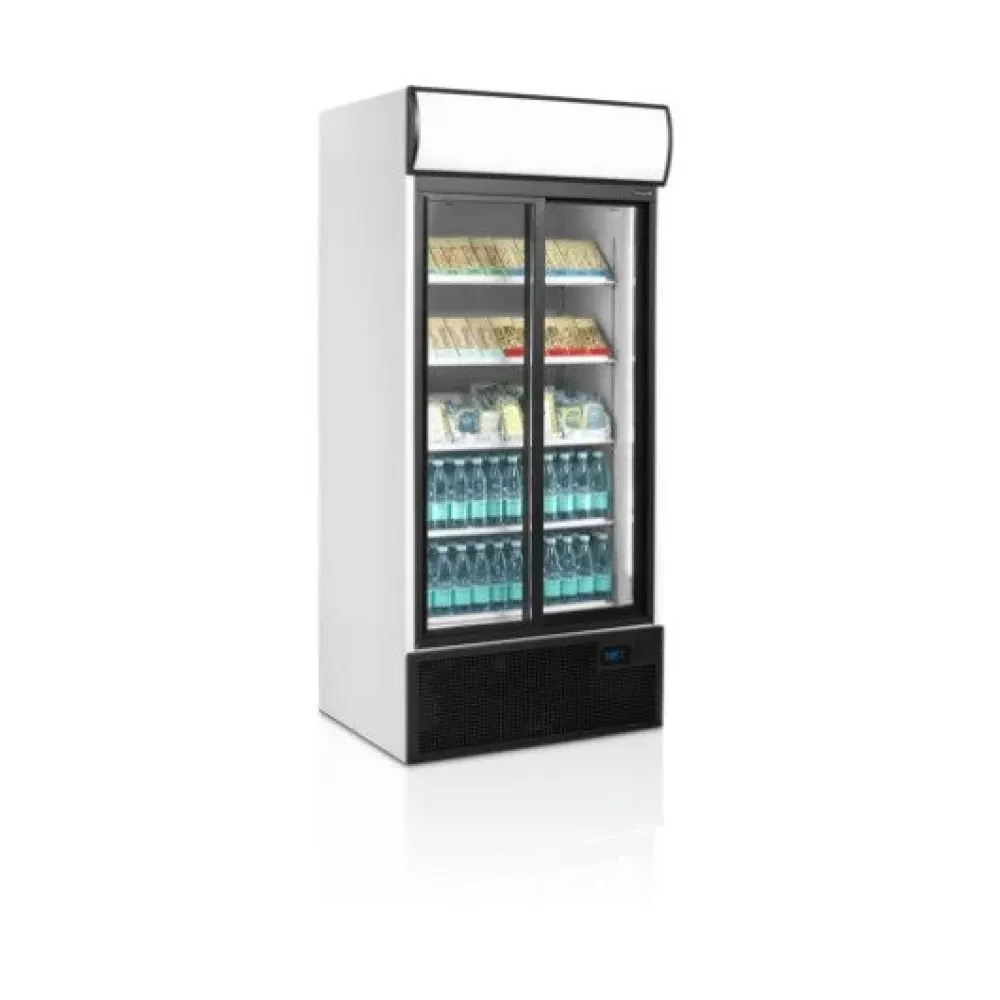

Refrigerated display cabinet TEFCOLD FSC891S

A refrigerated display cooler keeps bottled and canned drinks chilled while making them visible to customers. A compressor circulates refrigerant through evaporator coils inside the cabinet, drawing heat out of the air and lowering the temperature to the set range. The cooled air is held inside by insulated walls and a tight seal on the glass doors, so the drinks stay cold without drying out or frosting over.

The operator loads the drinks onto the five wire shelves, arranging them so the labels face forward. The shelves adjust in height to fit different bottle and can sizes. Once the cooler is plugged in and the temperature is set between +2 °C and +10 °C, the compressor starts automatically and maintains the chosen level. LED lighting inside the door frame illuminates the drinks, making the colours and labels stand out. The glass doors allow customers to see the selection without opening the cabinet, which keeps the cold air inside and reduces energy use.

The cabinet is built with a white interior and exterior, and the five wire shelves measure 794 mm by 400 mm each. The refrigerant used is R290, with a charge of 115 g. The unit runs on a 220 V-240 V, 50 Hz supply and draws 0.41 kW. The footprint is 890 mm wide, 740 mm deep and 1990 mm high, and the total volume is 462 L. The cooler weighs 153 kg, which means it is moved on a trolley or pallet jack rather than lifted by hand.

The temperature range of +2 °C to +10 °C keeps drinks cold enough for immediate service without freezing them. The five shelves allow the operator to organise different brands and sizes, and the wire construction lets air circulate around the bottles and cans. The glass doors and LED lighting make the drinks easy to see, which helps with sales and reduces the time the doors are open. The 462 L volume holds up to 720 x 330 ml cans, 504 x 500 ml cans, 360 x 330 ml bottles or 360 x 500 ml PET bottles.

Cleaning involves wiping the wire shelves and the interior with a damp cloth and mild detergent. The glass doors are cleaned with glass cleaner to keep them clear and free of fingerprints. The exterior is wiped down regularly to remove dust and spills. The shelves can be removed for thorough cleaning, and the door seals should be checked to ensure they are tight and free of debris.
