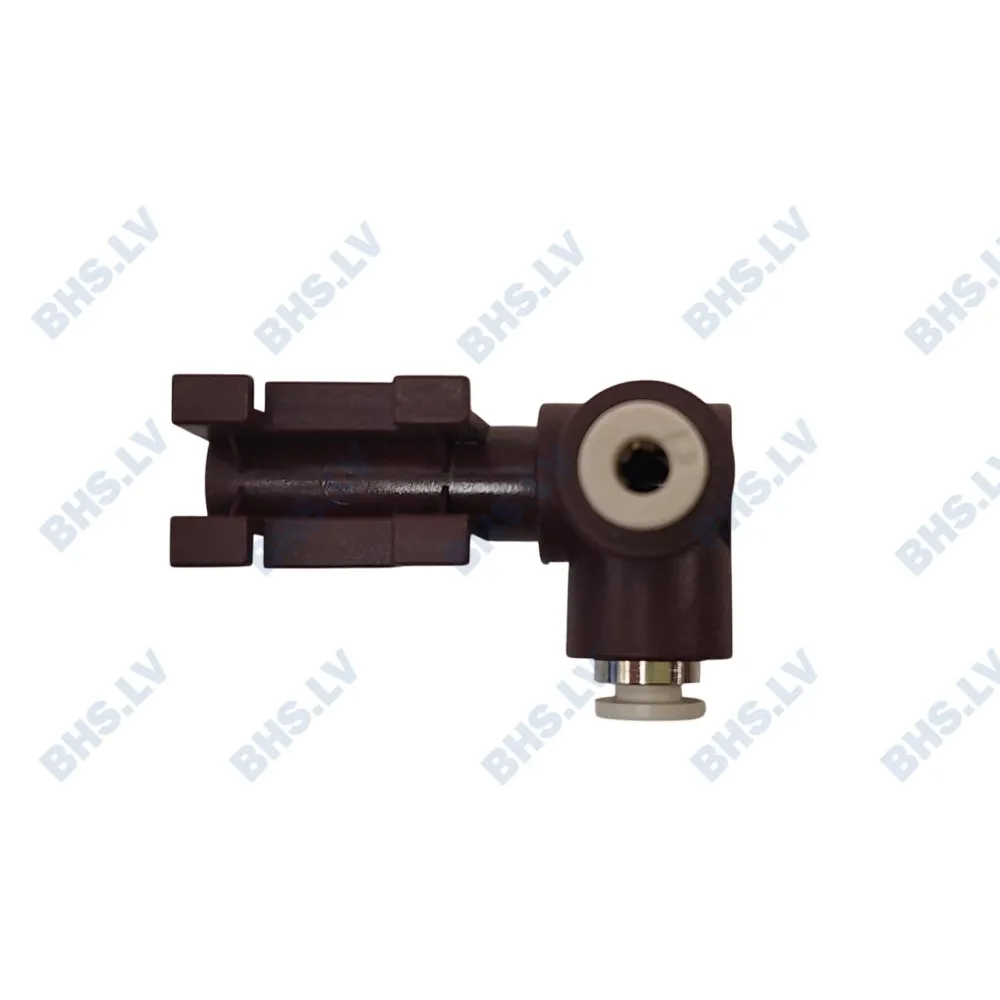

Plug-in elbow connection SCHAERER Spare Parts 3322697000

A plug-in elbow connection forms a right-angle joint between two flexible or rigid tubes without tools. The male barbed ends push into the tube bores, while the female sockets accept incoming fittings. An internal O-ring or sealing lip compresses as the parts mate, blocking leaks under pressure. This design allows quick assembly and disassembly during maintenance or reconfiguration of water and steam circuits in coffee machines and other beverage equipment.

The operator aligns the elbow with the tube ends, presses the barbs into place, then secures the joint with a clamp or collar if the system requires it. Once installed, the connection carries hot water, steam or cleaning solution at the pressures and temperatures the machine is designed for, routing flow around corners without kinking the tubing.

Constructed from POM (polyoxymethylene), the elbow resists heat, moisture and the acids and alkalis found in cleaning agents. The material does not corrode, scale or impart taste to the water, ensuring consistent beverage quality.

This spare part fits specific SCHAERER coffee machines; consult the machine's parts list to confirm compatibility before ordering.

Catalogued under SCHAERER spare parts for professional coffee equipment.
