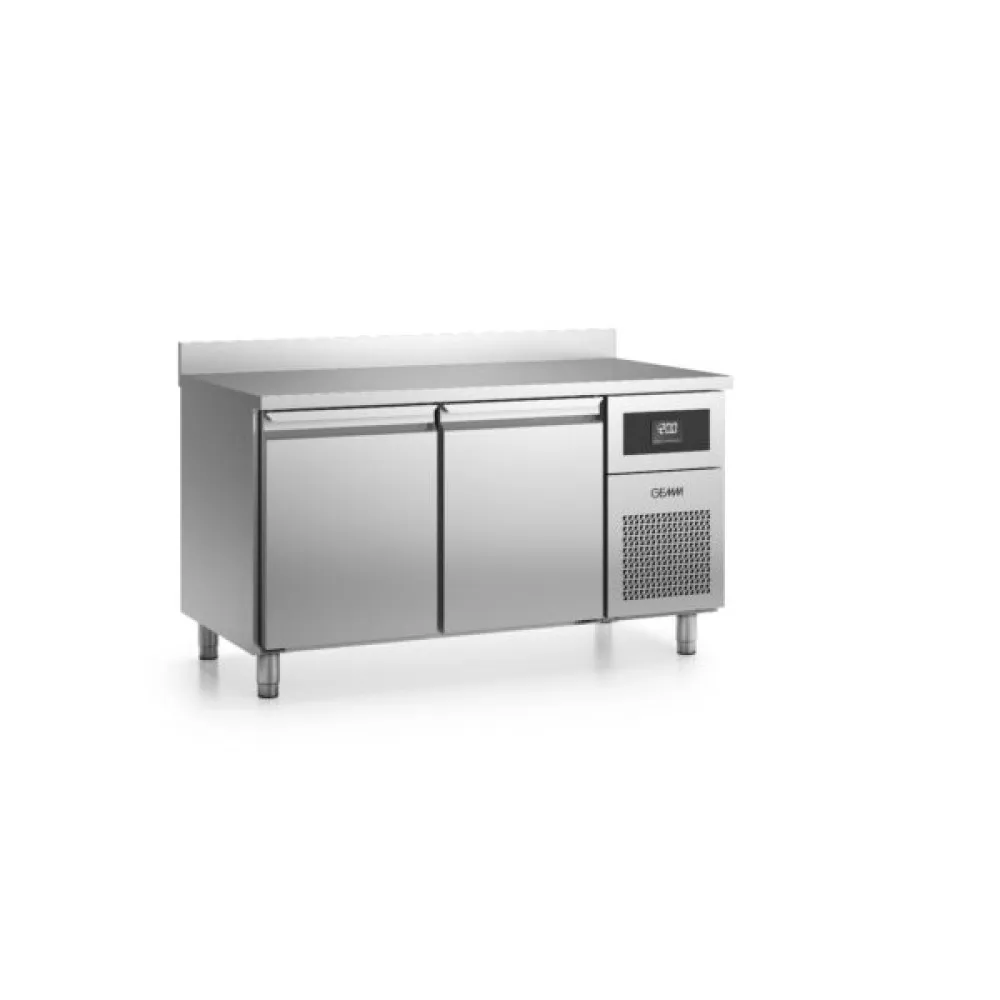

Freezer table GEMM 42040012

This GEMM table freezer, article 42040012, is a professional refrigeration unit designed for commercial kitchens. It provides a working surface above its refrigerated compartment.

The operating principle of a table freezer involves a refrigeration system that actively removes heat from the internal cabinet to maintain low temperatures. This unit employs HSS cooling technology, which is a method for efficiently extracting heat. The system uses a refrigerant, R290 in this case, to absorb heat from the interior and dissipate it externally. An automatic defrosting system, utilising heating elements, periodically melts any ice build-up on the cooling surfaces, preventing performance degradation. Condensate water from this process is removed automatically.

To use the freezer, food items are placed within the internal space, which can accommodate 60x40 cm containers. The internal shelf runners are spaced at 75 mm intervals, allowing for flexible storage configurations. The temperature is set and monitored using a 2.8-inch touch-sensitive digital panel. The unit operates within a temperature range of -15 °C to -20 °C.

Construction is from stainless steel, offering durability and ease of cleaning. The body has a height of 710 mm, and the overall unit dimensions are 1550 mm in length, 800 mm in width, and 1000 mm in height. Thermal insulation of 50 mm thickness is incorporated into the construction to minimise heat ingress. The technical compartment housing the cooling components is located on the right side of the unit.

The control interface is a 2.8-inch digital panel with touch-sensitive operation, allowing for precise temperature management and monitoring. The unit is rated for a power consumption of 0.485 kW and operates on a 230 V electrical supply.

The 270 L capacity provides substantial storage space. The unit weighs 170 kg. It complies with Climate Class 5 standards and has an energy efficiency class of D.

Cleaning and upkeep are facilitated by the stainless steel surfaces and the automatic defrost and condensate removal systems. Internal shelf runners can be accessed for cleaning.

This appliance is listed in the catalogue under cold equipment and table freezers.
