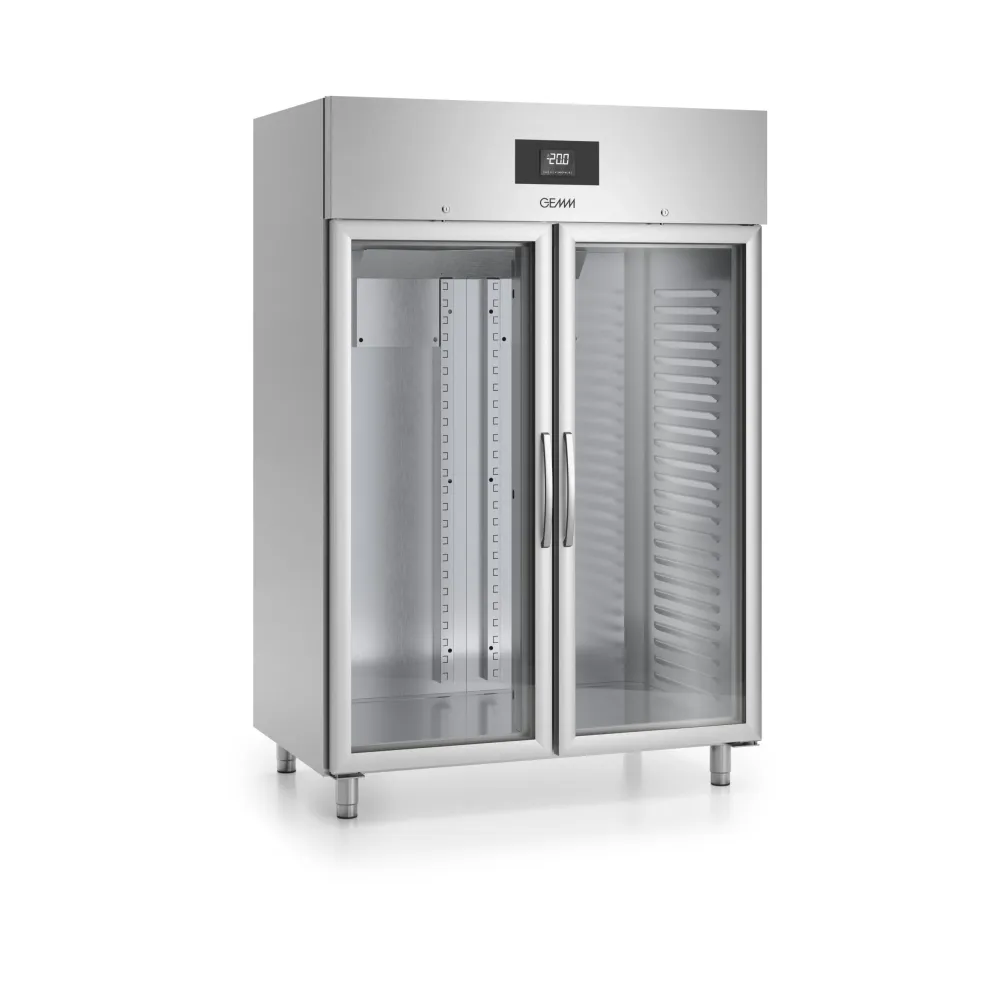

Display freezer GEMM 45002150

A freezer display cabinet keeps prepared food at serving-safe temperatures while presenting it to customers under clear glass doors. The refrigeration cycle circulates a low-pressure gas through an evaporator coil inside the cabinet, pulling heat from the air and lowering the temperature to the required sub-zero range. A fan distributes the cold air evenly across every shelf, preventing warm spots and ensuring consistent preservation regardless of where items are placed. The insulated cabinet walls slow heat transfer from the surrounding kitchen, reducing the energy needed to maintain the set temperature over long service periods.

To use the GEMM XFBV/140, unlock the doors with the supplied key and load up to six GN 2/1 gastronorm containers on the adjustable rails. Set the desired temperature between -18 °C and -21 °C using the 2.8-inch touch control panel; the digital display confirms the setting. Close the doors to start the automatic cooling cycle. The built-in defrost system periodically melts any ice build-up on the evaporator, and the condensate evaporates automatically, eliminating manual drainage. Internal LED lighting illuminates the contents, and the lockable doors secure the stock when the kitchen is closed.

The cabinet is constructed from deep-drawn stainless steel, forming seamless internal walls that resist corrosion and simplify cleaning. Six GN 2/1 shelves are included, fitting the 55 mm pitch rails that offer 24 adjustable positions for flexible storage layouts. The 80 mm insulation layer maintains stable internal temperatures, while the R290 refrigerant provides efficient cooling with a lower environmental impact. A single-phase 230 V supply powers the 0.955 kW compressor, suitable for standard UK commercial circuits.

The 866 L net capacity accommodates large volumes of frozen goods, and the 190 kg weight requires a sturdy floor or dedicated trolley for relocation. The 1390 mm width, 890 mm depth and 2090 mm height fit through standard kitchen doorways and under most worktop extractor hoods. The energy efficiency class F rating reflects the balance between cooling performance and power consumption in a professional setting.

Cleaning involves wiping the stainless steel surfaces with a damp cloth and mild detergent, avoiding abrasive pads that could scratch the finish. The automatic defrost and condensate evaporation systems reduce manual upkeep, though periodic checks of the door seals ensure optimal performance. The cabinet is designed for climate class 5, allowing reliable operation in warm and humid environments typical of busy catering kitchens.
