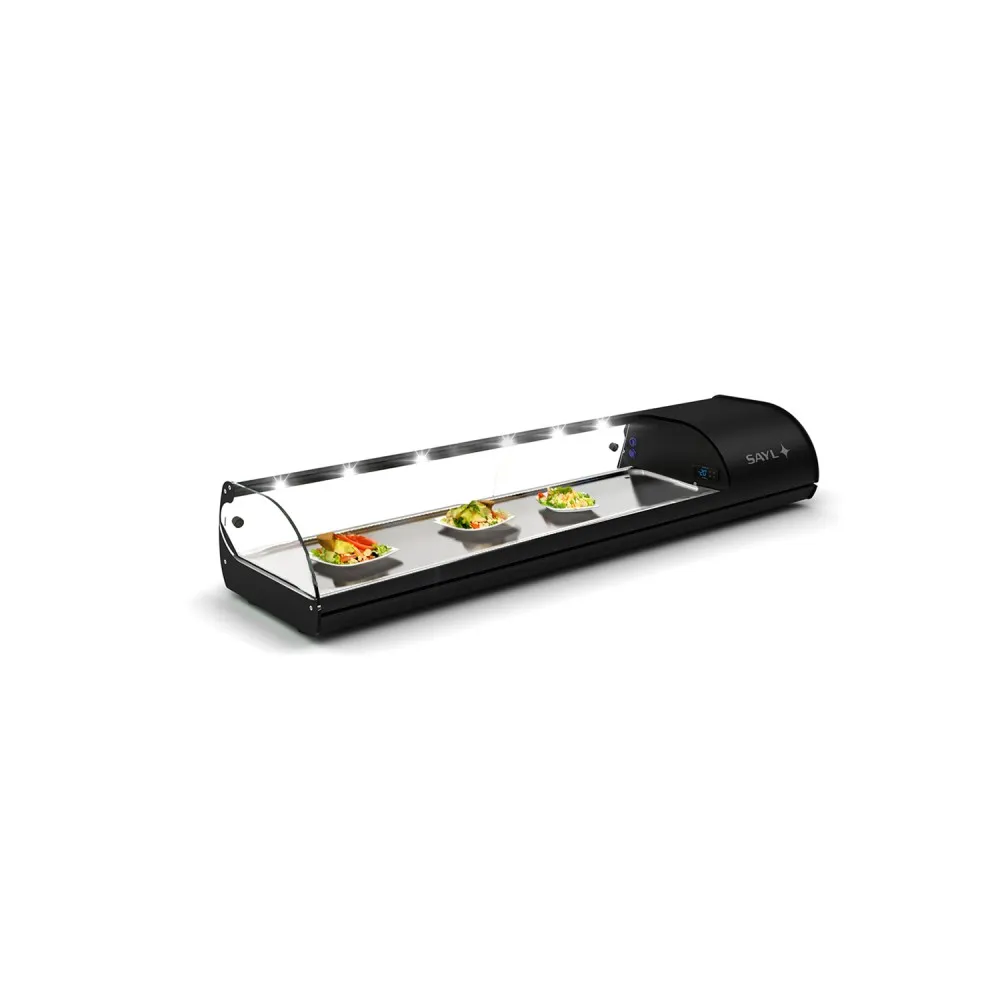

Display cabinet SAYL V6NP

A refrigerated display case preserves prepared food at safe temperatures while showcasing it beneath a clear cover. Static cooling uses natural convection: the evaporator coil chills air at the base, causing cooler, denser air to rise through the cabinet. This gentle movement maintains consistent temperatures without fans, preventing dehydration or odour transfer. The method works well for delicate items like pastries, salads, and desserts that thrive in still, humid conditions rather than direct cold airflow.

The CLASSIC V6NP is accessed from above. The operator raises the tempered-glass lid, arranges food on internal shelves, and shuts the lid. An electronic thermostat adjusts the temperature between +2 °C and +6 °C, displaying both the set point and current internal temperature. Once connected to a 230 V supply, the hermetic compressor activates, circulating refrigerant through the evaporator coil. The coil extracts heat from the air, causing the refrigerant to evaporate. The compressor then pumps it to the condenser at the back, where it releases heat and condenses back into liquid, repeating the cycle. LED lights above the shelves illuminate automatically, highlighting food without generating excess heat.

Constructed as a single unit, the case features stainless-steel interiors and exteriors. The tempered-glass lid resists impacts, scratches, and cleaning agents, while its hinged design allows easy removal for maintenance. A built-in drainage channel collects condensation and spills, directing them to a removable tray at the rear. Concealed sensors track temperature and lid position, cutting power to the compressor if the lid remains open or the temperature exceeds the set range.

The electronic thermostat regulates the compressor to maintain temperatures between +2 °C and +6 °C. The cooling power of 180 W determines how swiftly the case can chill warm items and restore temperatures after the lid is opened. The equipment power of 90 W supports the compressor, LED lighting, and control circuitry. The 45 kg weight enables movement by two people or a small trolley, while the 1438 mm length fits standard worktops or counters. Designed for climate class 3, the case operates in ambient temperatures suitable for most indoor environments.

Cleaning requires lifting the lid and disconnecting power. The drainage channel and tray are removed, washed, and dried. Interior and exterior surfaces are wiped with mild detergent, and the glass lid is cleaned with a soft cloth. The condenser coil at the back should be brushed monthly to remove dust and sustain cooling efficiency.

The CLASSIC V6NP is available as a single model without variations, listed under SAYL's refrigerated display cases in the static-cooling category.
