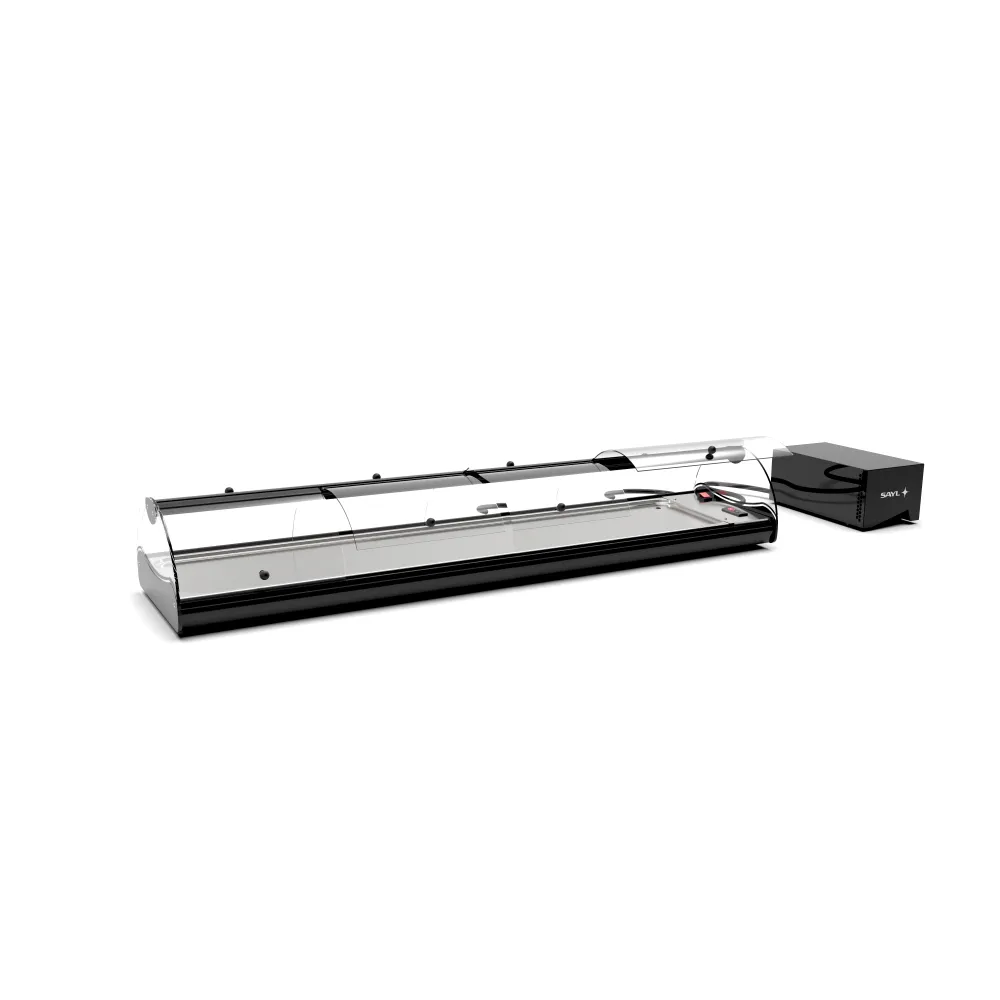

Display cabinet SAYL S8GRP

A refrigerated display cabinet maintains chilled products at a consistent low temperature while keeping them visible and accessible. The refrigeration system removes heat from inside the cabinet and releases it externally, creating a cold environment that preserves freshness. A fan distributes cooled air evenly across all shelves, eliminating warm spots and ensuring uniform cooling throughout the display area.

To operate the S8GRP, open the sliding PMMA doors, arrange chilled items on the shelves, then close the doors. Select the required temperature using the electronic thermostat; internal sensors continuously monitor conditions and regulate the compressor automatically. LED lights activate when the doors are opened, providing clear illumination without generating additional heat. Adjustable feet allow the unit to sit level on uneven surfaces, while a connection hose links the display case to the remote refrigeration unit for adaptable positioning.

The cabinet is built from AISI 304 stainless steel, selected for its resistance to corrosion and straightforward cleaning. The interior tank features rounded corners and an integrated drainage system for efficient rinsing. The front doors combine PMMA and tempered glass, designed to slide effortlessly and detach easily for daily cleaning. A ventilated double turbo condenser ensures the compressor remains cool and quiet, even during extended use.

The electronic thermostat displays the temperature digitally and permits precise adjustments within the range suitable for dairy, desserts and other perishable goods. The unit operates on a 230 V supply, compatible with standard UK commercial circuits, and delivers a cooling power of 180 W. The dimensions of 1540 mm in width, 395 mm in depth and 245 mm in height determine its footprint. The equipment power of 95 W covers lighting and control functions.

Cleaning involves removing the sliding doors, wiping the PMMA and glass surfaces, rinsing the interior tank via the drainage system, and drying all components before reassembly. The LED lighting requires only occasional dusting, and the refrigerant R600a is pre-charged and sealed, eliminating the need for refills.

The S8GRP features four static cooling zones and is classified as Climate Class 3, ensuring reliable performance in typical commercial environments. The remote refrigeration unit is included, connected by a hose for flexible installation.
