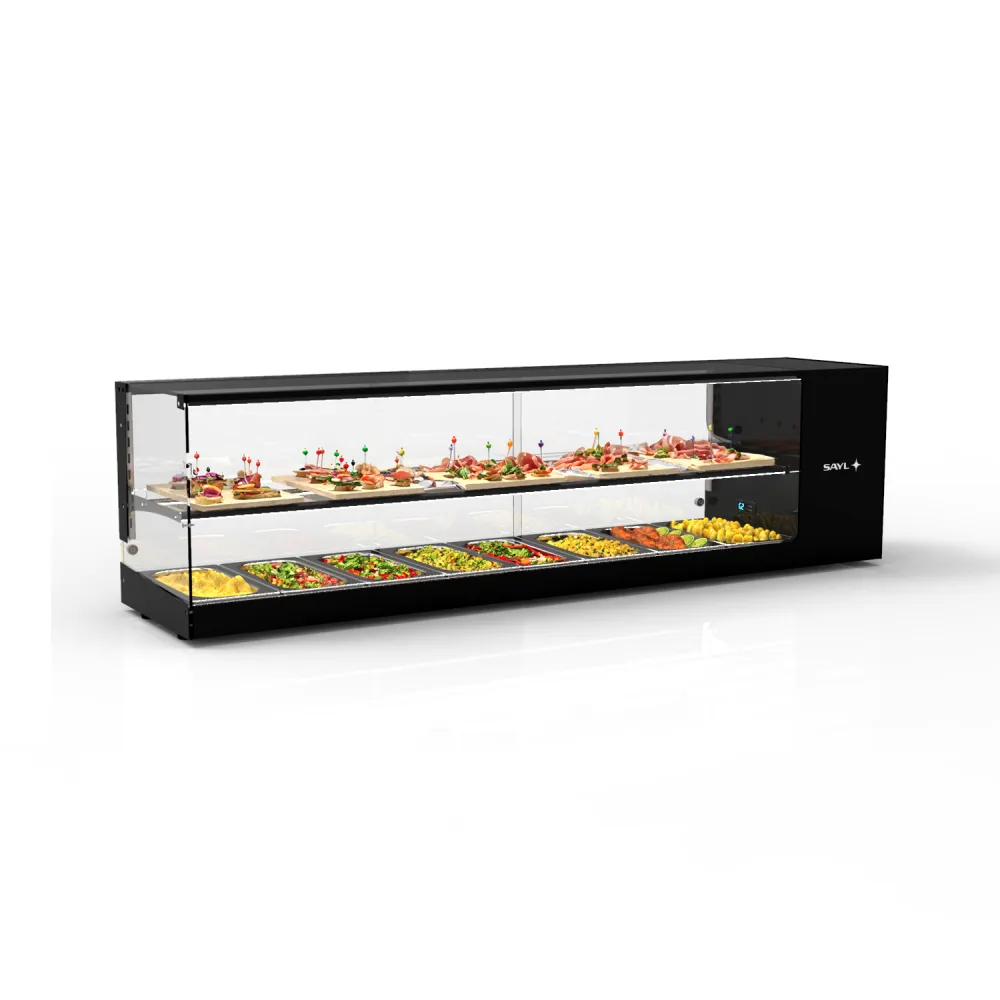

Display cabinet SAYL BHS-VTLG28-1

This refrigerated display cabinet maintains chilled food in clear view while preserving the cold chain. Static cooling relies on natural air movement to remove heat, avoiding the noise and vibration of forced-air systems. The design prioritises both presentation and preservation, with full-height glazing allowing customers to see products without opening the cabinet. The refrigeration unit operates continuously to sustain the set temperature range, safeguarding perishable items from spoilage and extending their display life.

The cabinet accommodates up to eight GN1/3 gastronorm containers, which rest on the refrigerated shelf. Set the electronic thermostat between +2 and +6 °C, then power on the unit. LED lighting switches on automatically, evenly illuminating the contents. A motor on the right side circulates air gently around the containers, ensuring uniform temperature throughout. Customers can view and select items through the full-height glass without disrupting the internal climate, minimising temperature fluctuations and energy use.

Constructed from AISI 304 stainless steel, the cabinet resists corrosion and simplifies cleaning. Smooth, seamless surfaces eliminate crevices where dirt might accumulate. A flat tempered-glass top and full-height front glazing offer unobstructed visibility from all angles, while a protective profile guards the glass edges. Four adjustable legs allow levelling on uneven floors, ensuring stability and a seamless countertop fit.

The SAYL-Blue electronic thermostat provides precise temperature control, enabling operators to set and monitor the internal environment. A built-in drainage system collects condensation and directs it away, preventing water from pooling inside or dripping onto the floor. LED lighting highlights products without shadows or glare, enhancing their appearance while consuming minimal energy.

Measuring 1680 mm wide by 380 mm deep, the cabinet integrates easily into most countertop layouts, offering ample display space without excessive floor use. It operates on a standard 230 V supply, simplifying installation. The static cooling system, paired with refrigerant R600a, performs efficiently within climate class 3.

Cleaning is straightforward thanks to the Easy to Clean system: smooth surfaces, rounded corners, and removable parts allow quick wiping with a damp cloth. The drainage system can be flushed periodically to avoid build-up, and glass surfaces can be cleaned with standard products without damaging the tempered finish. Adjustable legs can be removed for thorough base cleaning, and the interior shelf lifts out for complete sanitisation.

Designed for eight GN1/3 gastronorm containers, each 40 mm deep, the cabinet suits small to medium-sized operations like pastry shops, cafés, and delicatessens.
