Technical data
| Attributes | |
| ARTICLE | 40202387 |
| POWER | 0.405kW |
| SIZE L/W/H | 900/ 690 / 810 |
| VOLTAGE | 1x230V ~ 50Hz |
| Temperature | -2/+8°C |
| WEIGHT | 86kg |
| Model | TG7D/090S |
| CAPACITY | 90L |
| Refrigerant | R290 |
| NOTES | Energy consumption 1,47 kWh/24h Energy efficiency class B Included:GN 1/1 shelf each door |

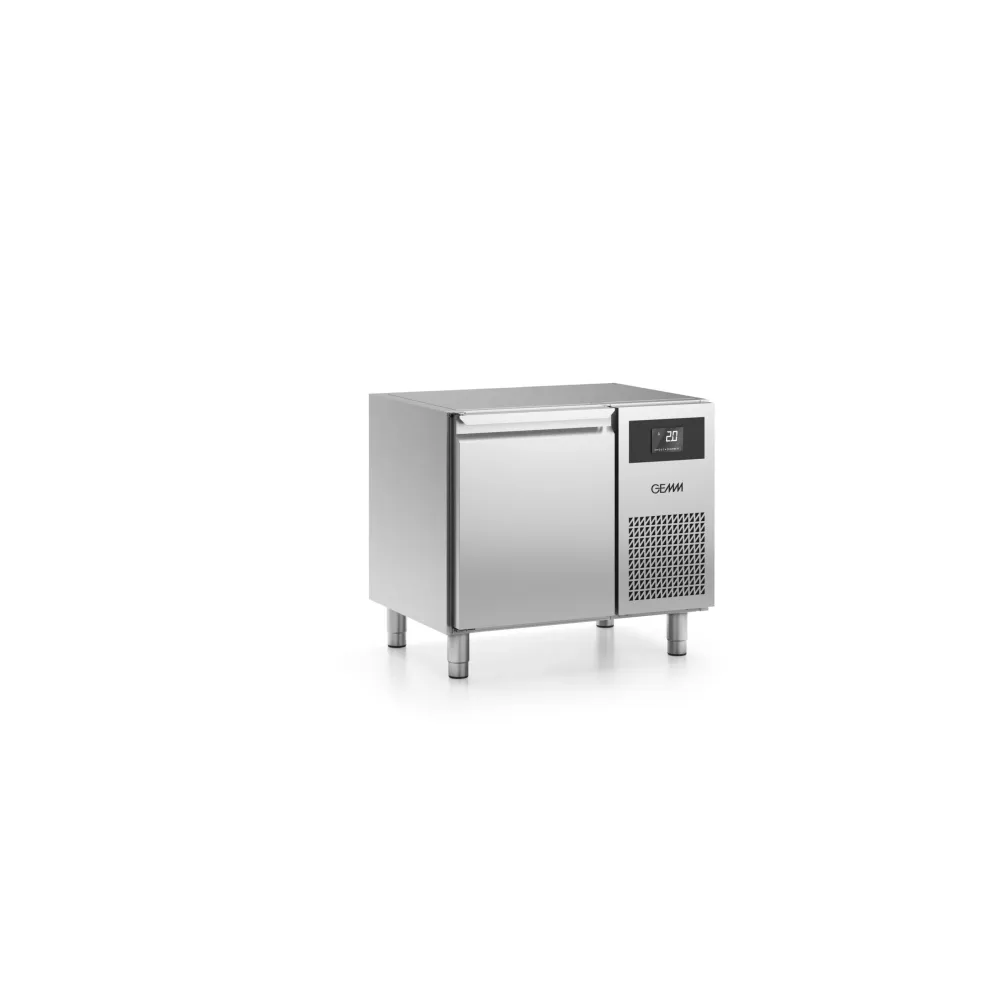

This refrigerator table combines outstanding design with professional functionality — an ideal solution for any modern professional kitchen.
1 door
Plug-in system
A refrigerated table keeps perishable ingredients chilled while providing a stable surface for food preparation. Inside the cabinet, a compressor circulates refrigerant through an evaporator coil, pulling heat from the air and lowering the temperature. A fan spreads the cooled air evenly across every shelf, preventing warm spots and ensuring consistent chilling. The insulation layer traps the cold, reducing the compressor's workload and cutting energy use. This method allows the table to maintain precise temperatures even when the kitchen is busy and the door is opened frequently. The operator loads GN 1/1 containers onto the shelf behind each door. The digital touch panel is set to the desired temperature between -2 °C and +8 °C. Once powered, the compressor starts and the fan circulates cold air. The automatic defrost cycle activates at intervals, melting any ice on the coil with a heating element and draining the condensate away without manual intervention. When the door is opened, the fan pauses to prevent cold air escaping, then resumes once the door closes. The seamless stainless-steel cabinet shrugs off kitchen steam, grease splashes, and daily scrub-downs without staining or warping. The 50 mm insulation layer runs between the inner and outer walls, maintaining stable temperatures. A single GN 1/1 shelf is included behind each door, positioned to hold standard gastronorm containers. The technical compartment can be mounted on either the right or left side, allowing the table to fit different kitchen layouts. The touch control panel displays the current temperature and allows precise adjustment. The automatic defrost system removes the need for manual defrosting, and the condensate is evaporated or drained automatically, eliminating the need for a fixed drain connection. A 90 L capacity provides space for multiple GN 1/1 containers, keeping ingredients organised and accessible. The 0.405 kW power rating indicates the load on the electrical circuit, requiring a dedicated 230 V supply. The 86 kg weight means the table is moved with a trolley or two people, and the 900 mm width determines the worktop space it occupies. The -2 °C to +8 °C temperature range covers chilled storage for fresh produce, dairy and prepared dishes. The R290 refrigerant is a hydrocarbon with low environmental impact, used in modern refrigeration systems. After service, a quick wipe with a damp cloth and mild detergent removes fingerprints and spills from the mirror-polished surfaces, leaving the unit ready for the next rush. The GN 1/1 shelves can be removed for thorough cleaning. The automatic defrost system reduces ice build-up, but the evaporator coil should be checked periodically for dust or debris that could obstruct airflow. The touch panel is cleaned with a soft, dry cloth to avoid damage. The table is supplied with one GN 1/1 shelf per door. Custom drawer configurations are available on request, and the unit is prearranged for plinth installation, allowing the height to be adjusted to match other worktops. The catalogue places this model in professional refrigeration for commercial kitchens, under tables and counters designed for chilled storage.
