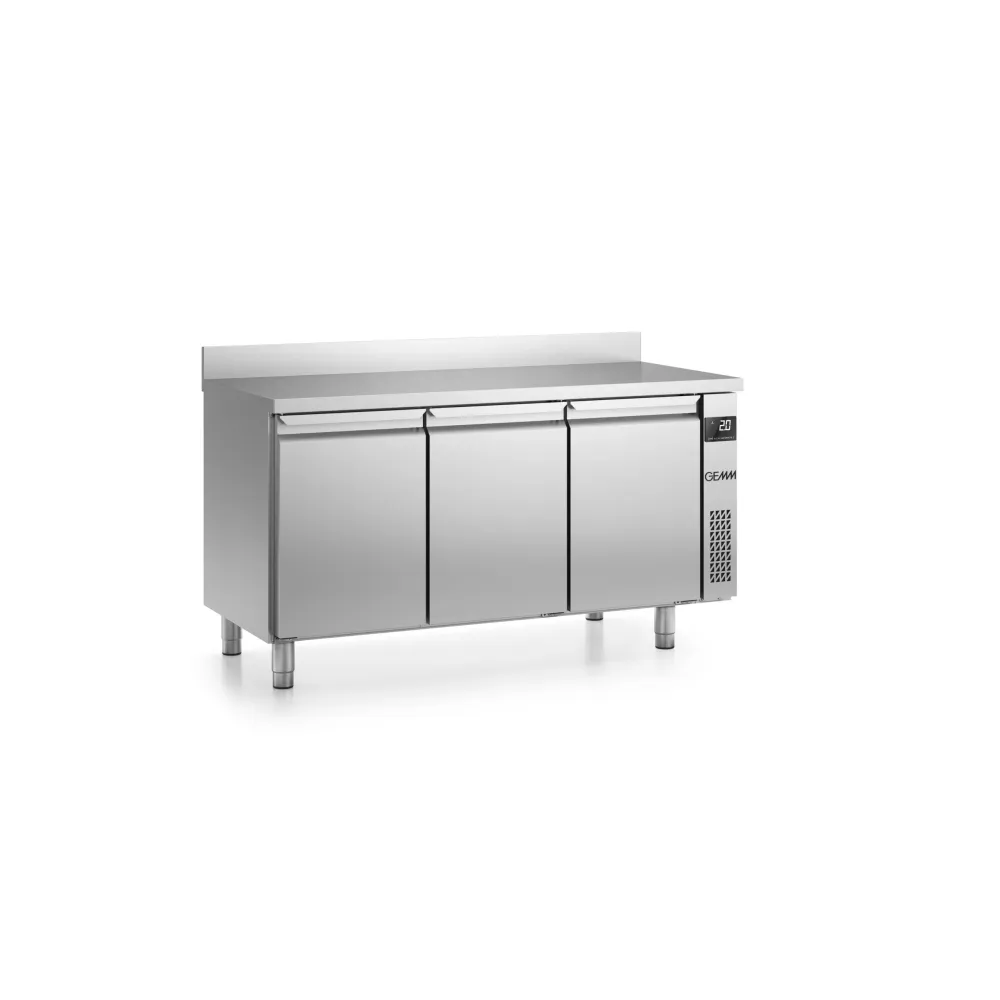

Counter refrigerator table without drawers GEMM 40202260

A refrigerated table keeps prepared ingredients chilled at safe temperatures while providing immediate access on the kitchen floor. The GEMM TNG7D/200S circulates cold air through a fan-driven evaporator coil, drawing heat from the interior and expelling it at the rear. This ventilated cooling system distributes the cold evenly across every shelf, preventing hot spots and ensuring every container reaches the same set point. The insulation layer slows heat transfer from the surrounding kitchen, reducing the compressor's running time and energy use.

The operator loads GN 1/1 gastronorm containers directly onto the wire shelves behind each hinged door. After closing the doors, the digital touch panel on the front edge allows the temperature to be set anywhere between -2 °C and +8 °C. Once the desired value is entered, the refrigeration cycle starts automatically: the compressor pumps refrigerant through the evaporator, the fan circulates the chilled air, and the automatic defrost system periodically activates heating elements to melt any frost build-up on the coil. Condensate is collected and evaporated, so no external drainage is required. The unit continues to maintain the set temperature until the doors are opened for the next retrieval.

The entire cabinet is constructed from stainless steel, including the exterior panels, interior liner and the 10/10 gauge worktop. A 50 mm insulation layer separates the inner and outer skins, minimising heat ingress. The technical compartment housing the compressor and condenser can be positioned on either the right or left side to suit the kitchen layout. Each door is supplied with one GN 1/1 wire shelf, and additional shelves or drawers can be specified when ordering. The table stands on adjustable feet and is pre-drilled for optional plinth installation.

The 1990 mm width provides space for multiple GN 1/1 containers side by side, while the 690 mm depth keeps the unit within standard worktop depth for easy reach. The 810 mm overall height allows staff to load and unload without bending. A 0.605 kW power rating corresponds to a single-phase 230 V supply, the standard circuit found in most commercial kitchens. The 124 kg weight requires two people or a trolley for safe movement, and the smooth stainless steel surfaces allow the unit to slide on protective mats when repositioning is needed.

Cleaning is limited to the parts named: wipe the stainless steel interior and exterior with a damp cloth and mild detergent, remove and wash the wire shelves separately, and periodically check that the condenser coil at the rear is free of dust. The automatic defrost and condensate evaporation systems eliminate the need for manual drainage, reducing daily upkeep.

The TNG7D/200S is classified to Climatic Class 5, meaning it maintains stable operation in ambient temperatures up to +40 °C, making it suitable for kitchens with high heat and humidity. The catalogue places this model in the refrigerated tables section under GN-compatible storage units.
