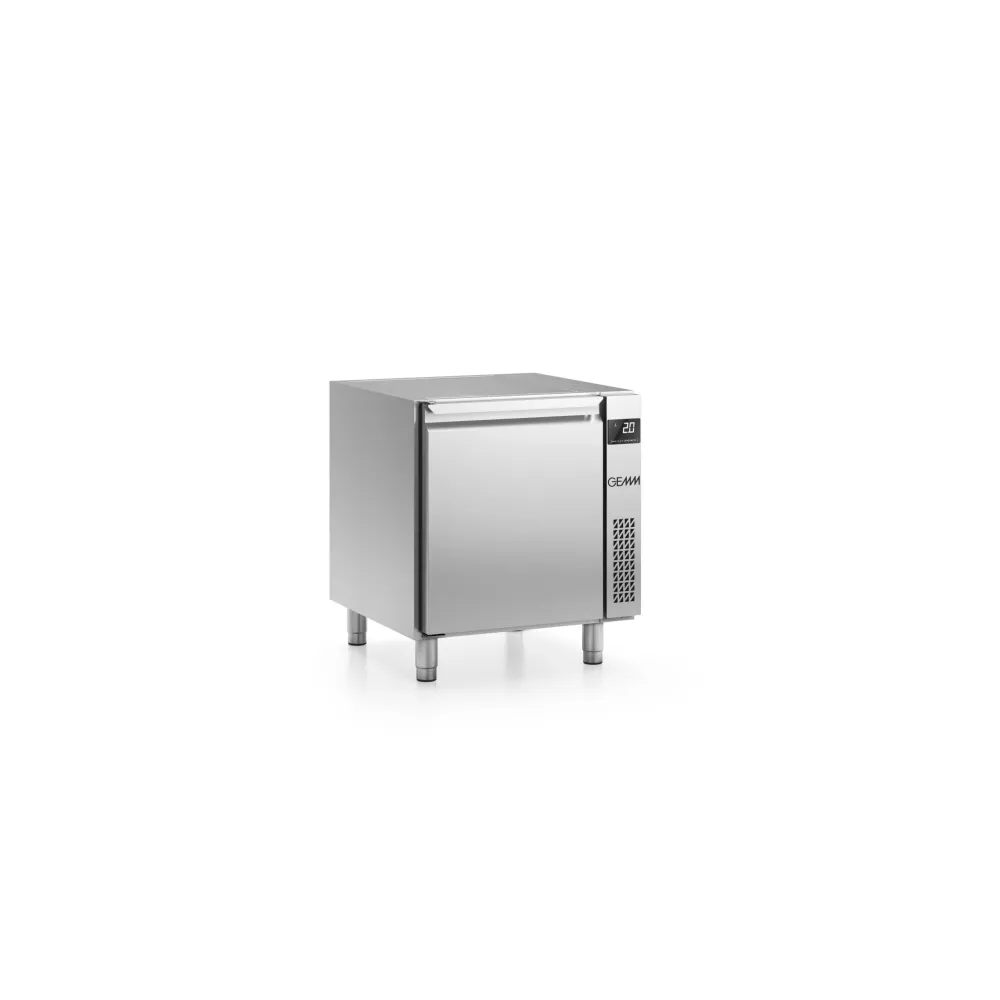

Counter refrigerator table without drawers GEMM 20806160

The GEMM TBPN/07 is a refrigerated base, article number 20806160. This appliance functions as a refrigerator, actively removing heat from its interior to maintain a cool environment for food storage. Unlike a passive cold store, a refrigerated unit employs a refrigeration cycle, typically involving a compressor, condenser, expansion valve, and evaporator, to transfer thermal energy outwards.

This base unit is constructed from stainless steel and features 2 doors. Inside, there are 7 levels with 75 mm spacing between them, designed to accommodate GN 600x400 mm containers. It comes equipped with 2 pairs of runners and one 60x40 cm shelf for each door.

The control panel is a 2.8-inch touch-sensitive digital display. The unit features automatic defrosting, which is activated by heating elements to clear frost build-up.

The operating temperature range for this refrigerated base is between 2 °C and 8 °C. Its internal volume is 195 L. The external dimensions measure 740 mm in length, 770 mm in width, and 870 mm in height.

The refrigeration system utilises R134a gas. This appliance complies with climate class 5 standards. It is listed in the catalogue as a table refrigerator without drawers.
