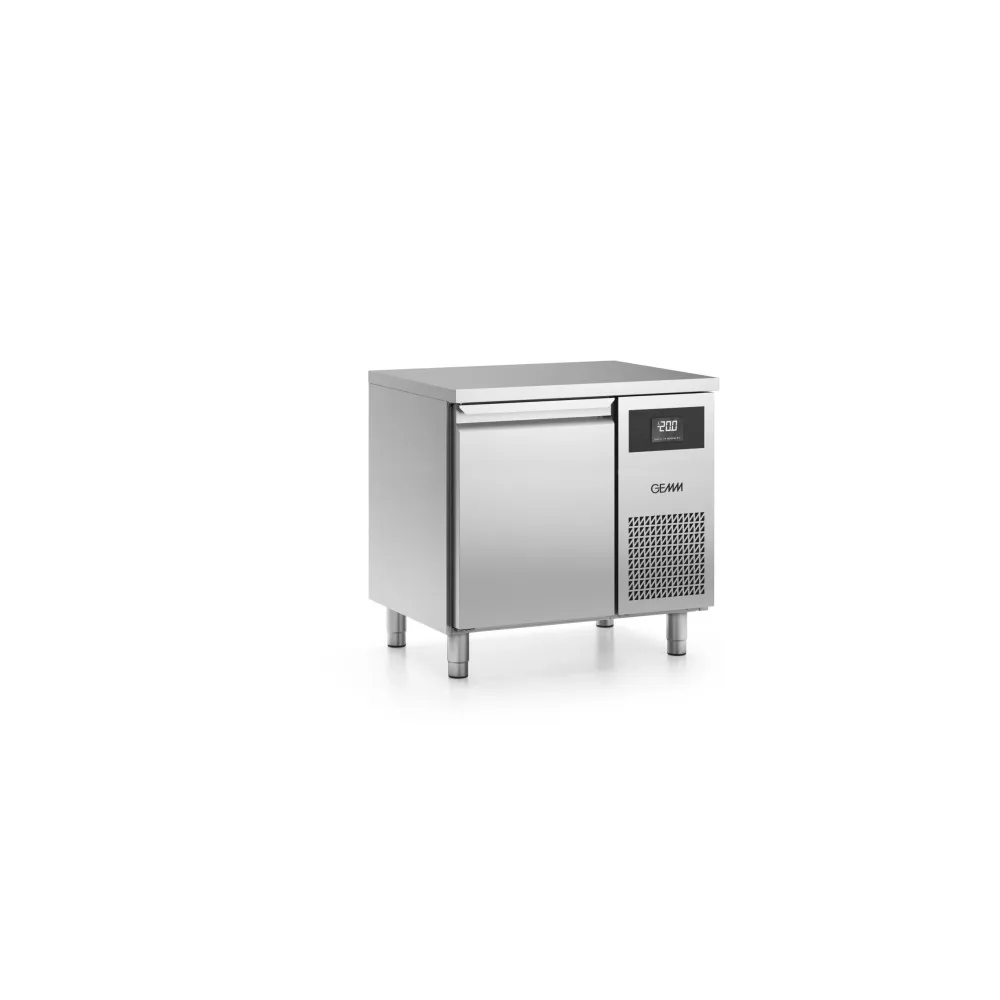

Counter freezer GEMM 40340012

A freezer table that doubles as a worktop, holding food at -20 °C while providing a hygienic stainless-steel surface for preparation.

The unit cools by circulating air over an evaporator coil charged with R290 refrigerant. A fan draws warm air from the cabinet, passes it over the cold coil, and returns the chilled air through vents at the rear. This continuous loop keeps every shelf at the same temperature, preventing hot spots and maintaining frozen food at the set point without manual rotation.

To use the table, load GN 1/1 containers onto the two shelves behind each door. Set the desired temperature on the 2.8″ touch panel; the display confirms the setting. The automatic defrost cycle activates at intervals, melting frost from the coil with built-in heating elements and evaporating the condensate so no drainage is needed. When the cycle ends, the compressor restarts and the cabinet returns to the set temperature.

The cabinet is constructed from stainless steel inside and out, including the robust worktop. A 50 mm insulation layer separates the inner liner from the outer skin, reducing heat gain and stabilising the internal climate. The technical compartment, housing the compressor and fan, can be positioned on either side to fit the kitchen layout.

The 230 V single-phase supply draws 0.487 kW under normal operation. The 88 kg weight requires two people to move the unit; once in place, the adjustable feet level it on uneven floors. The 900 mm width and 700 mm depth fit beneath standard worktops, while the 900 mm height matches most kitchen counters, allowing seamless integration.

Two GN 1/1 shelves are supplied, one behind each door. The digital control panel allows temperature adjustment between -15 °C and -20 °C, suitable for frozen storage. Energy efficiency class D reflects the balance between cooling performance and power consumption in a compact cabinet.

Cleaning involves wiping the stainless-steel interior and worktop with a damp cloth and mild detergent. The automatic defrost system removes condensate without manual intervention, but the evaporator coil should be checked periodically for dust accumulation. The shelves can be removed for thorough cleaning.

The THBD/090 is classified under Climatic Class 5, meaning it maintains stable operation in environments up to +40 °C and high humidity, such as busy kitchens. The unit is prearranged for plinth installation if a lower height is required.
