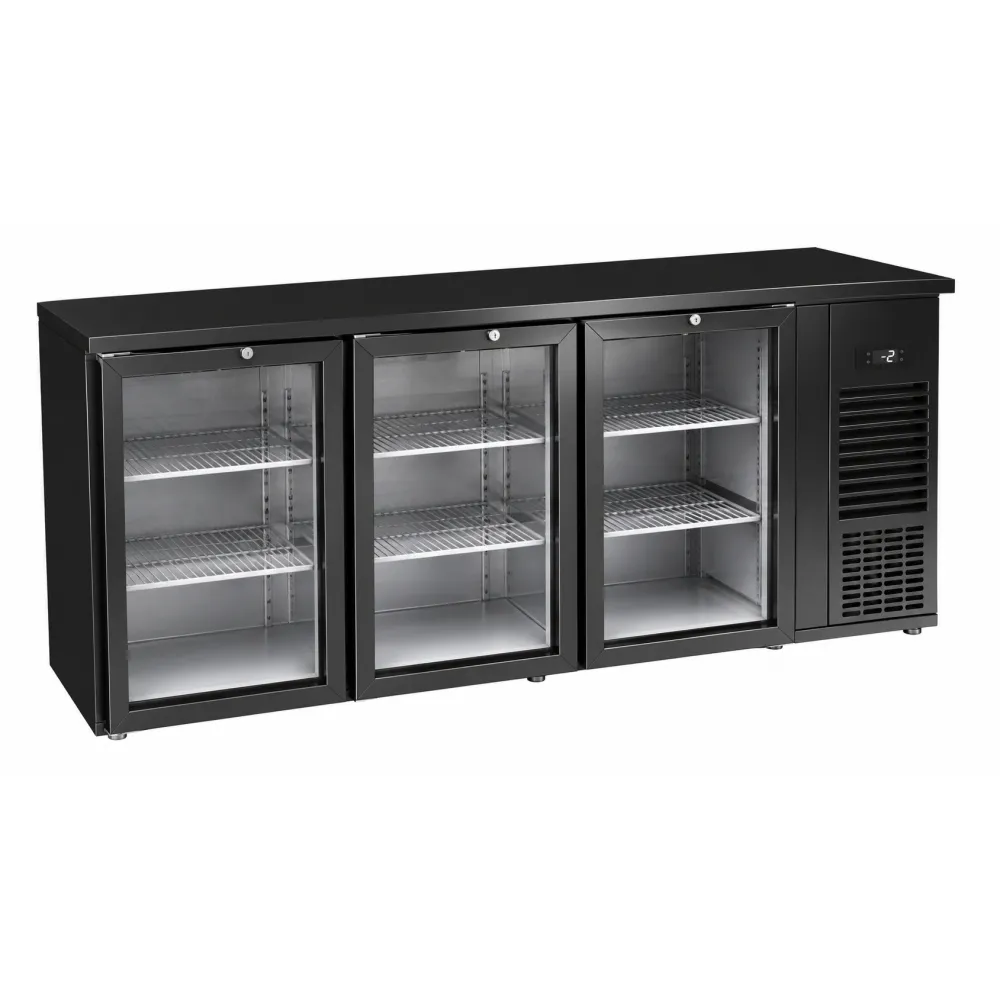

Bar refrigerator FAGOR 19106035

A bar display refrigerator keeps bottled and canned drinks chilled while showcasing them through clear glass doors. Instead of relying on a fan to circulate cold air, this unit uses natural convection: the evaporator coil cools the air at the back, and the denser cold air sinks, displacing warmer air upwards in a continuous loop. This gentle movement maintains an even temperature throughout the cabinet without drying out labels or disturbing bottle arrangements.

To use the refrigerator, load the adjustable wire shelves with bottles or cans up to 40 kg per shelf. Set the desired temperature between 0 and +8 °C on the digital control panel. The compressor cycles on and off automatically, and the off-cycle defrost system periodically stops the compressor to allow any frost to melt and evaporate without manual intervention. LED lighting inside the cabinet illuminates the contents, making them visible through the triple-glazed doors.

The cabinet is built with a 50 mm thick polyurethane foam insulation that contains no CFCs, reducing cold loss and improving energy efficiency. The interior liner is grey-coated steel, while the exterior is black-coated steel, both with a plastic finish for durability. The worktop is made of stainless steel, providing a sturdy surface for additional bar equipment. Three glass doors with low-emissivity double glazing minimise temperature fluctuations when opened.

The electronic control system includes a digital display for monitoring and adjusting the temperature. The unit operates on a 220-240 V single-phase 50 Hz supply, drawing 0.293 kW. Its footprint measures 1989 mm wide, 512 mm deep, and 850 mm high, with a total volume of 403 L and a weight of 128 kg. The front panel opens for easy access to internal components during cleaning or maintenance, and the ventilation grille allows for built-in installation while maintaining airflow.

Cleaning involves wiping down the interior and exterior surfaces with a damp cloth and mild detergent. The wire shelves can be removed and washed separately. The low-maintenance condenser reduces the need for frequent servicing, and the automatic defrost system eliminates the need to manually drain water.

This model is available in a 60 Hz version with refrigerant R600a, specified as article 19109436. The refrigerator is classified as Climate Class 4, suitable for ambient temperatures up to 40 °C.
