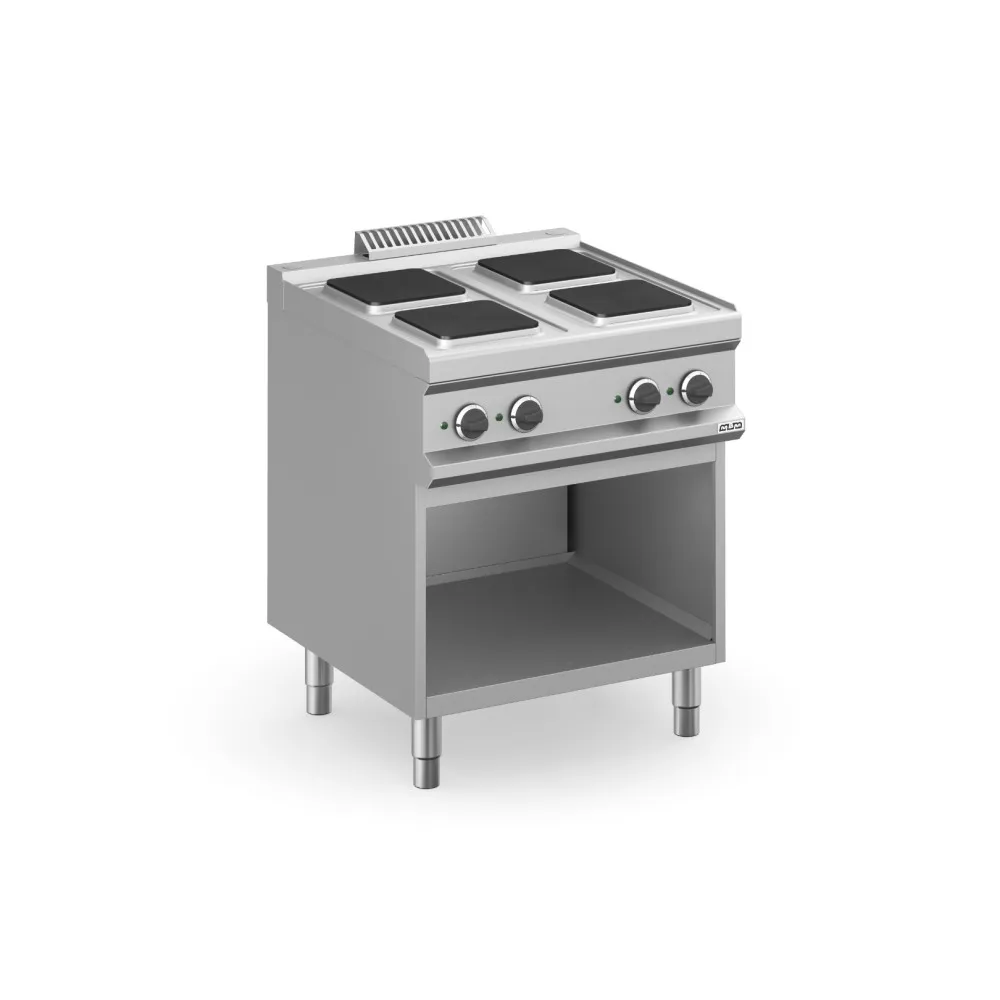

Electric hob with stand or neutral cabinet MBM MPQ77A

The MBM MAGISTRA PLUS 700 is an electric stove, article number MPQ77 A.

This type of stove operates by using electric heating elements beneath cast iron hot plates. When switched on, these elements generate heat which is transferred to the cast iron surface. The cast iron retains and distributes this heat evenly, providing a cooking surface.

To use the stove, place cookware directly onto the cast iron hot plates. Each hot plate is controlled by a 6-position thermostat, allowing for adjustment of the heat output. Indicator lights are present to show when each hot plate is active.

The construction features a 1 mm thick AISI 304 stainless steel worktop for durability and hygiene. The hot plates themselves are made from cast iron, measuring 300x300 mm each.

The controls consist of a 6-position thermostat for each hot plate, enabling precise temperature selection. Indicator lights signal when the hot plates are in use.

The power rating of 10.4 kW indicates the maximum electrical load the stove will draw when all elements are operating at full capacity. The dimensions are 700 mm in width, 714 mm in depth, and 850 mm in height, defining the unit's footprint and installation space. The weight of 69 kg provides an indication of the unit's mass. The stove requires a 400 V electrical supply.

Cleaning should focus on the stainless steel worktop and the cast iron hot plates. The reference text does not specify further maintenance procedures.

This model is listed in the catalogue for use with either a stand or a neutral cabinet.
