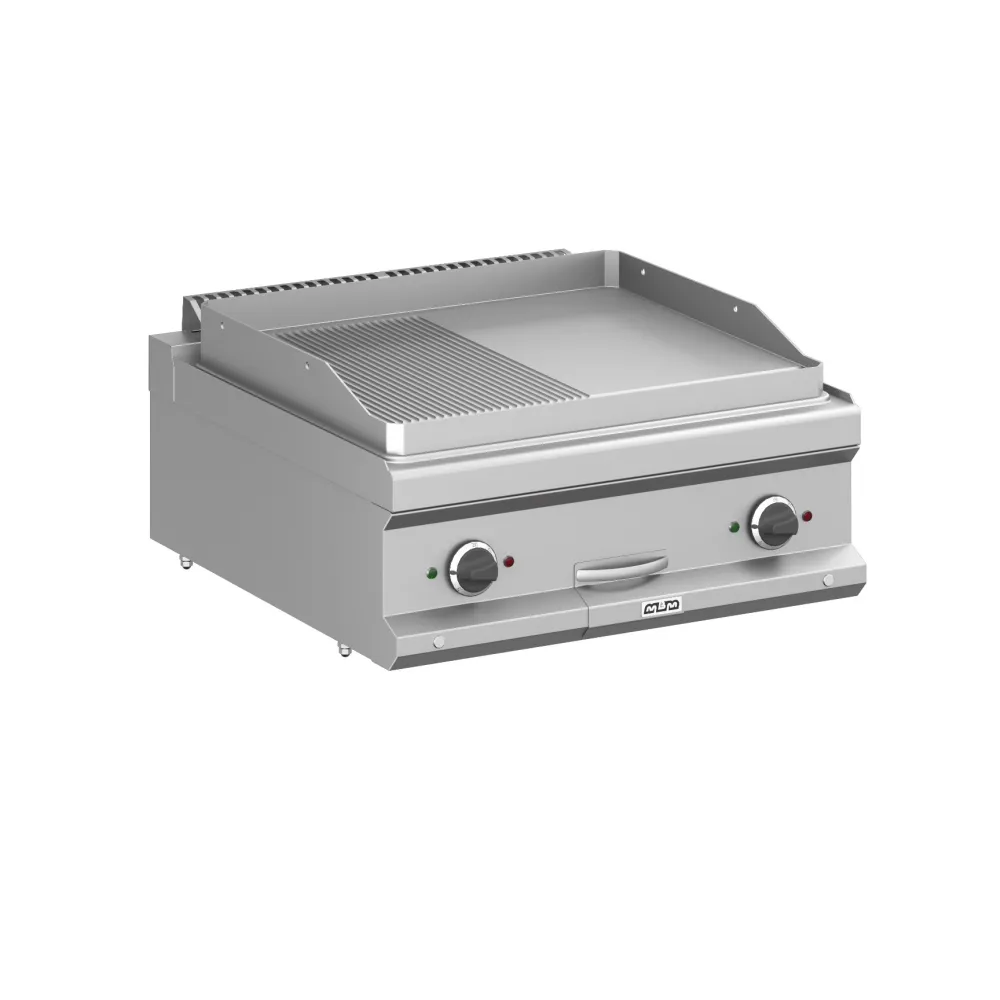

Electric griddle MBM MFTE77TLR

The MBM MAGISTRA PLUS 700 is an electric fry top, article number MFTE77TLR. This appliance is designed for professional cooking environments.

The operating principle of an electric fry top involves direct heat transfer from an electric element to a solid cooking surface. The armoured stainless steel heating elements are positioned beneath the cooking plate to heat it directly. This method allows for a consistent cooking temperature across the plate, suitable for searing and grilling a variety of food items.

Operation begins with powering the unit and setting the desired temperature using the thermostat control. Once the cooking plate reaches the set temperature, food can be placed directly onto the surface. The slight tilt of the cooking plate directs excess grease towards a removable 2-litre stainless steel basin, which collects the rendered fat for easy disposal and cleaning.

Constructed from AISI 304 18/10 stainless steel with a 1 mm body thickness, the fry top offers durability. The 3 mm thick AISI 304 stainless steel backsplash is welded to the cooking surface for a strong finish. The cooking plate itself is 15 mm thick, providing thermal mass for stable cooking temperatures.

Temperature is managed by a thermostat, allowing the user to select and maintain the required heat level for different cooking tasks.

The power rating of 8.0 kW indicates the maximum electrical load the appliance will draw from the supply. The dimensions of 700 mm in length, 714 mm in width, and 250 mm in height define its footprint and the space it occupies on a worktop. Operating on a 400 V, 3-phase electrical supply, the unit weighs 75 kg.

Cleaning involves emptying the removable grease basin and wiping down the stainless steel surfaces. The welded backsplash and solid cooking plate are designed for straightforward maintenance.

This model is listed in the catalogue for use with electric griddle tops.
